Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .

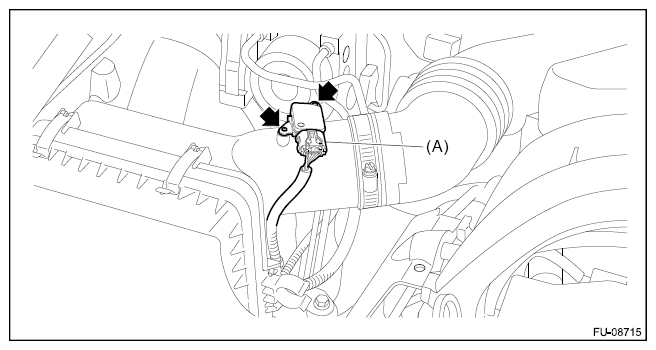

  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.
    G12505381Courtesy of SUBARU OF AMERICA, INC.
