Rear Oxygen Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

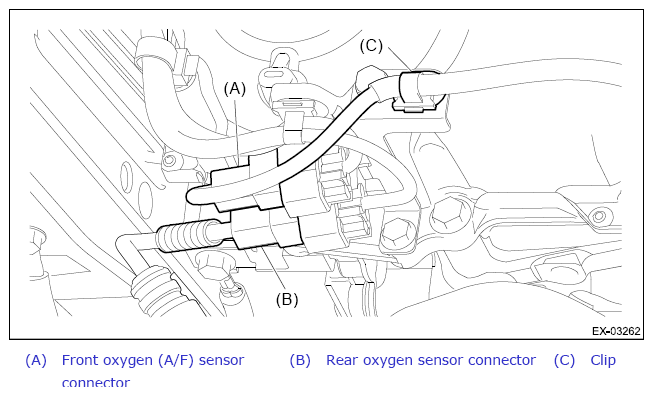

  4. Disconnect the rear oxygen sensor connector.
    G12505406Courtesy of SUBARU OF AMERICA, INC.
  5. Apply spray-type lubricant (004301003) or equivalent to the threaded portion of rear oxygen sensor, and leave it for one minute or more.

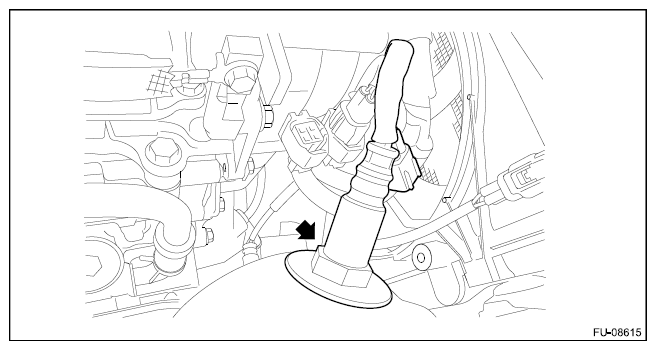

  6. Remove the rear oxygen sensor.
    CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage the exhaust pipe.
    G12505407Courtesy of SUBARU OF AMERICA, INC.
