Throttle Body: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of engine coolant. Ref. to COOLING (H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .

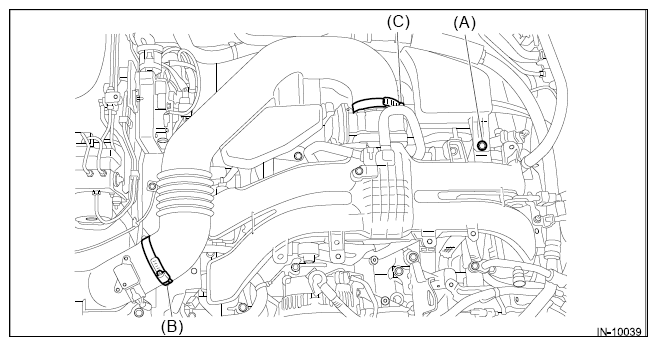

  3. Remove the clip (A) from the air intake boot.
  4. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
  5. Loosen the clamp (C) which secures the throttle body to the air intake boot.
    G12505306Courtesy of SUBARU OF AMERICA, INC.

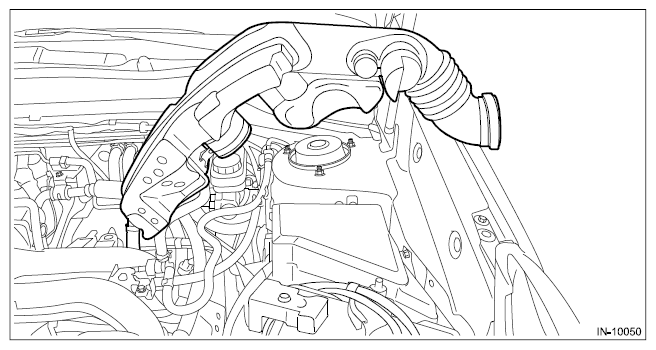

  6. Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.
    G12505307Courtesy of SUBARU OF AMERICA, INC.

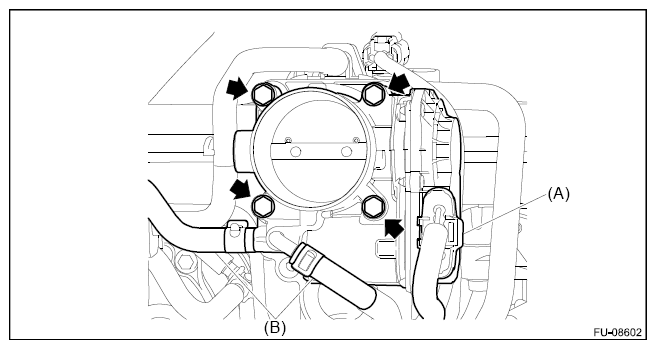

  7. Disconnect the connectors (A) from the throttle position sensor.
  8. Disconnect the preheater hose (B) from the throttle body.
  9. Remove the throttle body from the intake manifold assembly.
    G12505308Courtesy of SUBARU OF AMERICA, INC.
