MT Gear Select Cable: Removal

CAUTION: Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

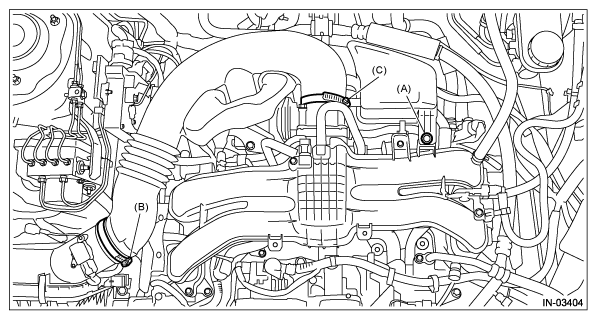

  2. Remove the clip (A) from the air intake boot.
  3. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).
  4. Loosen the clamp (C) which connects the air intake boot and throttle body.
    G12475923Courtesy of SUBARU OF AMERICA, INC.

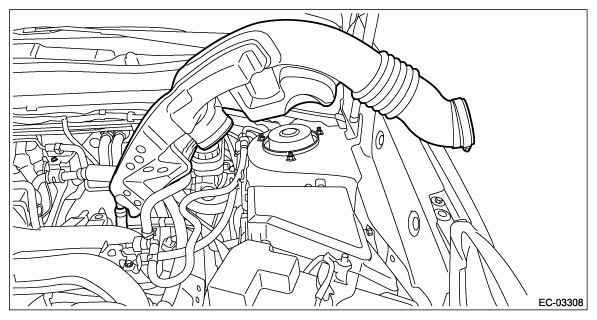

  5. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.
    G12475924Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the engine harness connectors, then remove the harness bracket.

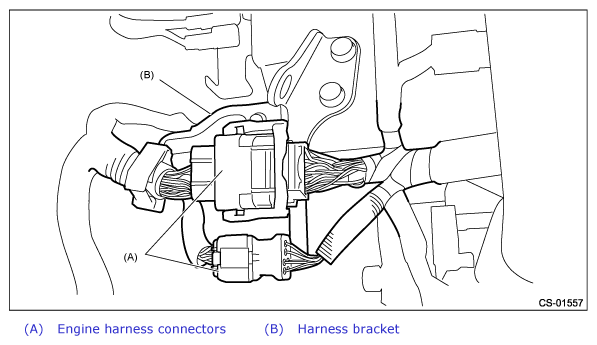

    G12475925Courtesy of SUBARU OF AMERICA, INC.

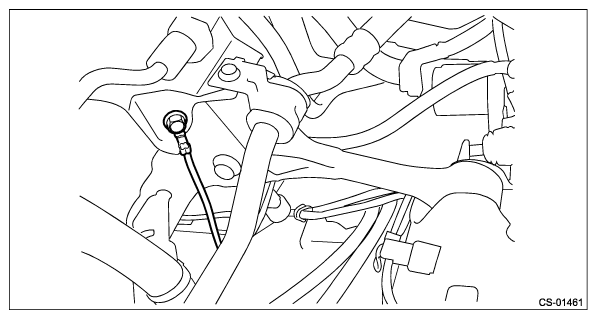

  7. Disconnect the transmission radio ground cord terminal.
    G12475926Courtesy of SUBARU OF AMERICA, INC.

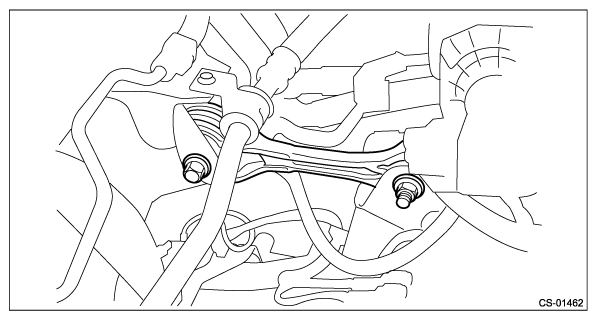

  8. Remove the pitching stopper.
    G12475927Courtesy of SUBARU OF AMERICA, INC.
  9. Lift up the vehicle.

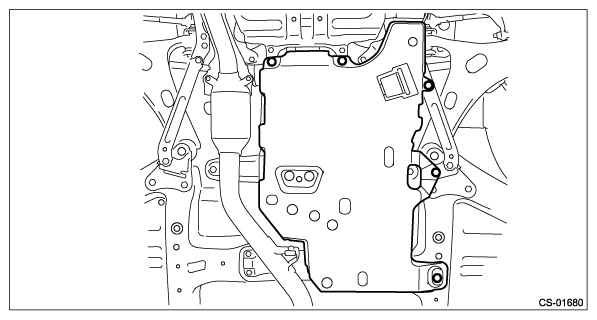

  10. Remove the transmission under cover.
    G12475928Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the center exhaust pipe. Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .

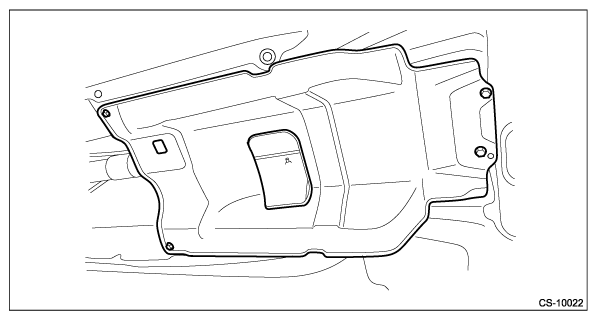

  12. Remove the center exhaust cover.
    G12475929Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the propeller shaft. Ref. to DRIVE SHAFT SYSTEM>Propeller Shaft>REMOVAL .

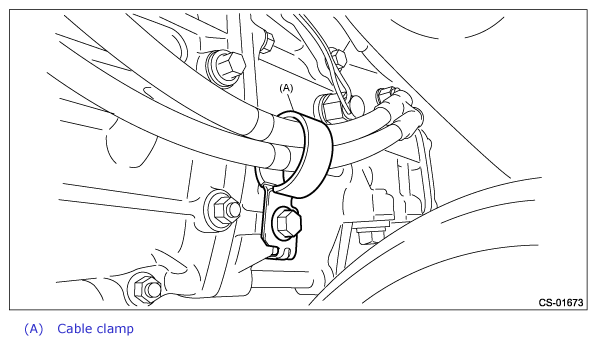

  14. Remove the cable clamp and take out the MT gear select cable from the clamp.
    G12475930Courtesy of SUBARU OF AMERICA, INC.
  15. Place the transmission jack under the transmission.

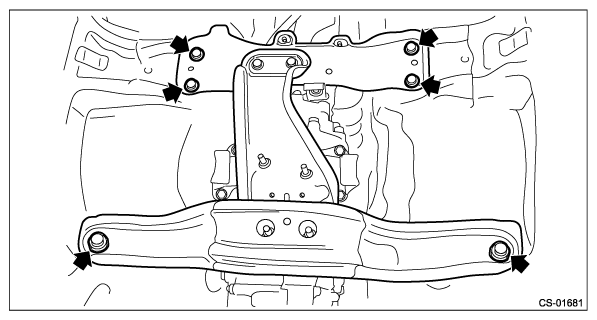

  16. Remove the mounting bolt of front crossmember and rear crossmember, and lower the transmission approx. 100 mm (4 in).
    G12475931Courtesy of SUBARU OF AMERICA, INC.

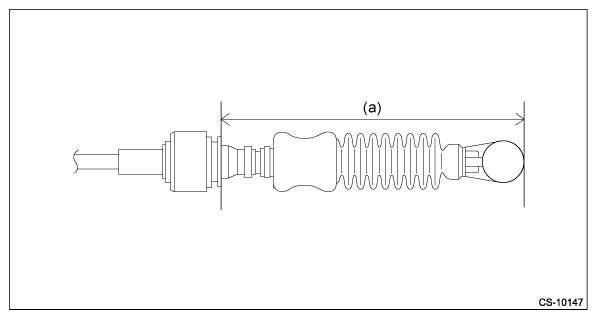

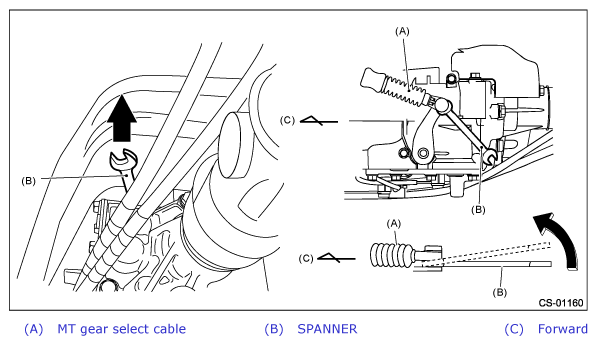

  17. Insert a spanner between the selector lever COMPL and the MT gear select cable, and remove the MT gear select cable by raising the handle.
    CAUTION: Do not apply excessive load while holding the part (a).
    G12475932Courtesy of SUBARU OF AMERICA, INC.
    NOTE:
    • Use a spanner with 11 to 13 in size.
    • The thickness of the spanner must not exceed 6 mm (0.2in).
    G12475933Courtesy of SUBARU OF AMERICA, INC.

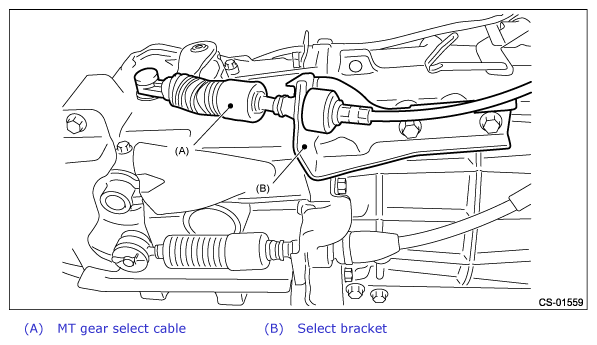

  18. Remove the MT gear select cable and select bracket as a single unit from the transmission body.
    G12475934Courtesy of SUBARU OF AMERICA, INC.

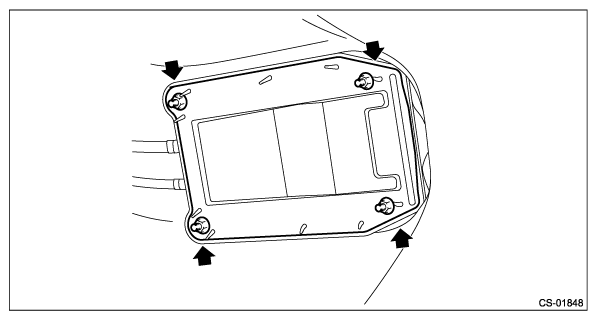

  19. Remove the cable cover plate.
    G12475935Courtesy of SUBARU OF AMERICA, INC.

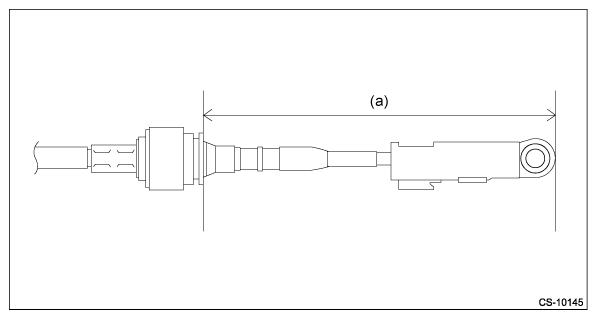

  20. Disconnect the MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not apply excessive load while holding the part (a).
    G12475936Courtesy of SUBARU OF AMERICA, INC.

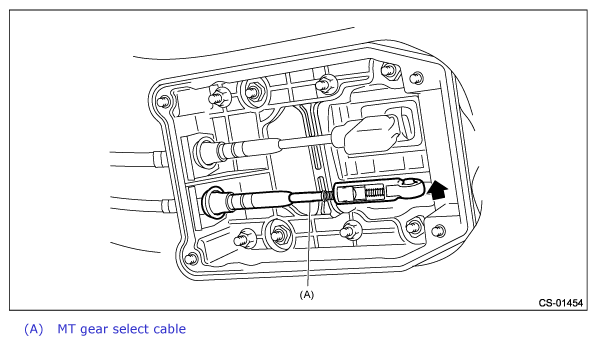

    NOTE: Push the MT gear select cable in the direction of arrow, and remove it.
    G12475937Courtesy of SUBARU OF AMERICA, INC.

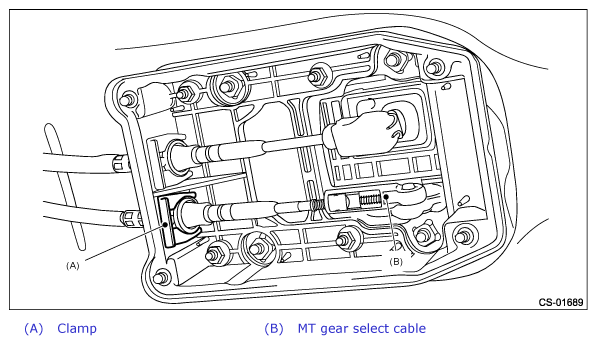

  21. Remove the clamp which holds the MT gear select cable.
    G12475938Courtesy of SUBARU OF AMERICA, INC.

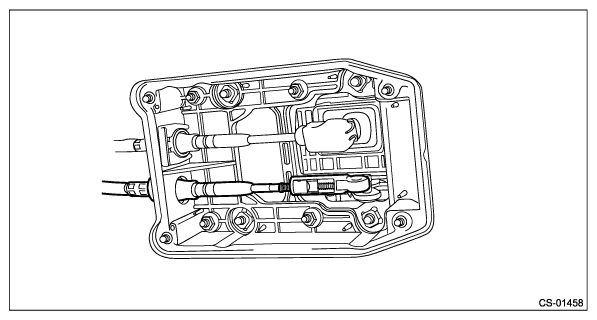

  22. Pull out the MT gear select cable from cable cover assembly.
    CAUTION: Do not bend the MT gear select cable sharply.
    G12475939Courtesy of SUBARU OF AMERICA, INC.
