MT Gear Shift Cable: Installation

CAUTION:

Do not bend MT gear shift cable at a sharp angle.

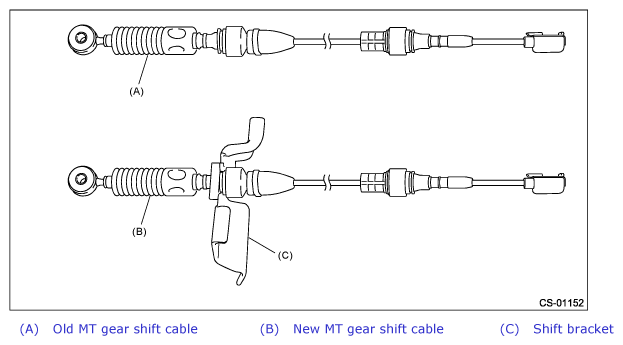

When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.

Courtesy of SUBARU OF AMERICA, INC.

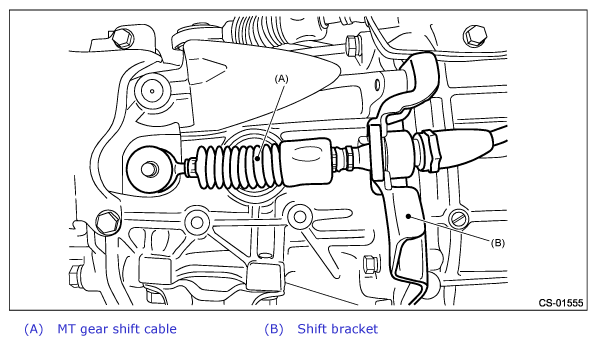

Install the MT gear shift cable and shift bracket as a single unit onto transmission.
CAUTION:
- Do not twist the cable inner excessively.

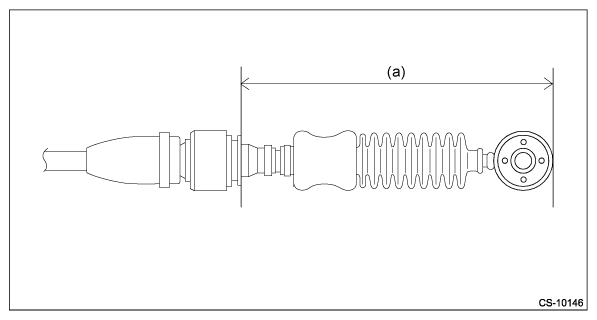

- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

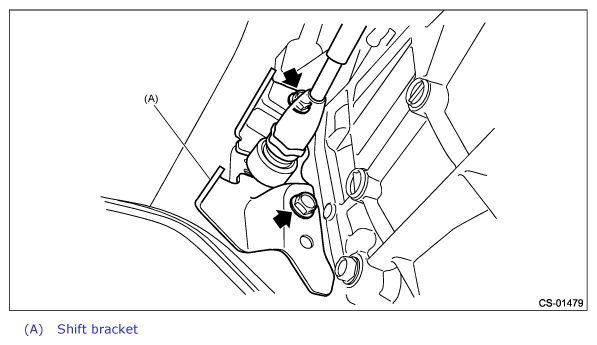

Tighten the shift bracket with specified torque.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

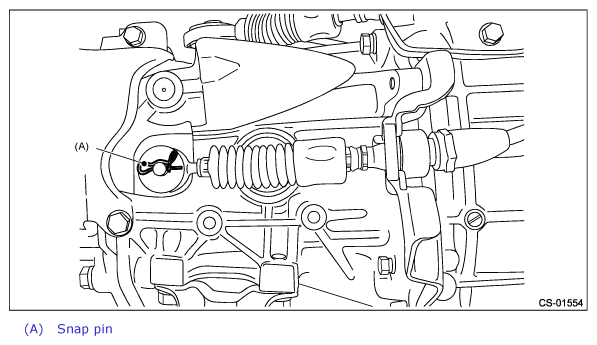

Install the snap pin to the shift lever COMPL.

Courtesy of SUBARU OF AMERICA, INC.

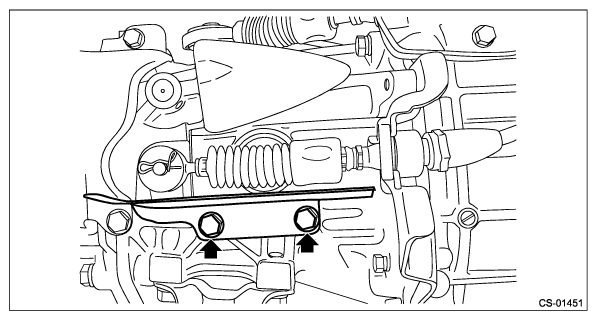

Install the dust cover to the transmission body.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

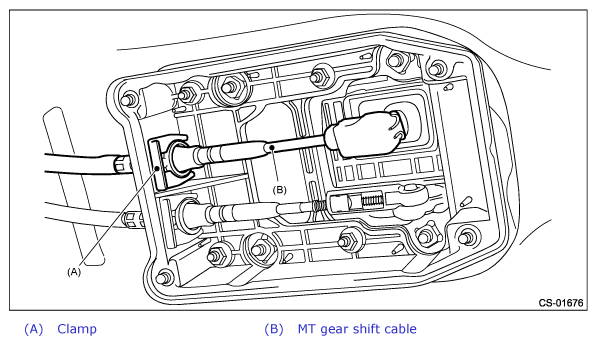

Insert the MT gear shift cable into cable cover assembly, and secure it with the clamp.

Courtesy of SUBARU OF AMERICA, INC.
Connect the MT gear shift cable.

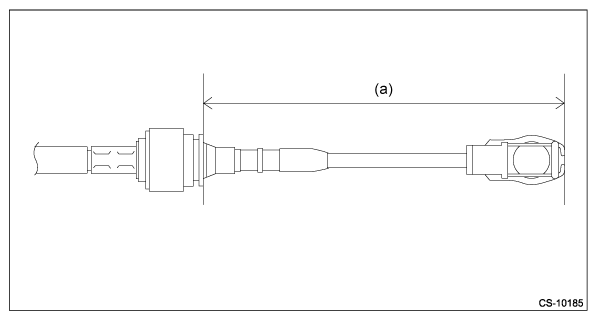

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

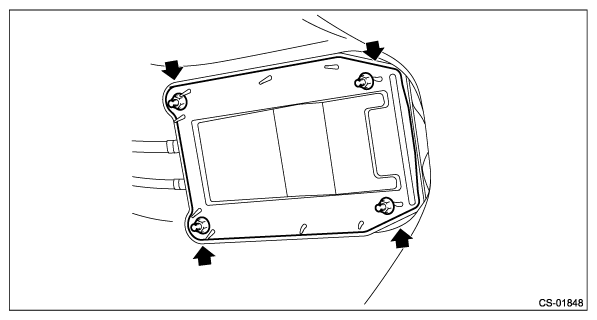

Attach the cable cover plate.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

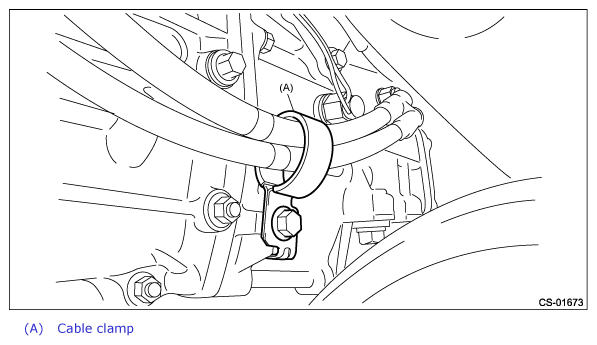

Insert the MT gear shift cable into cable clamp, and install to the transmission.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

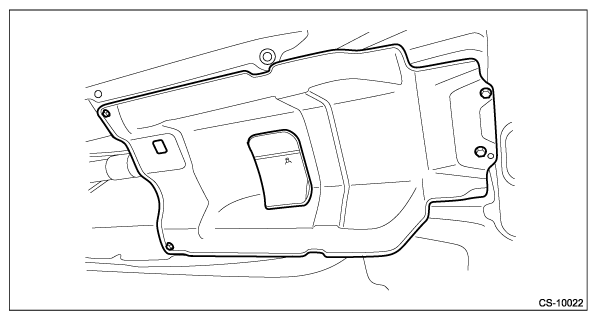

Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>INSTALLATION .

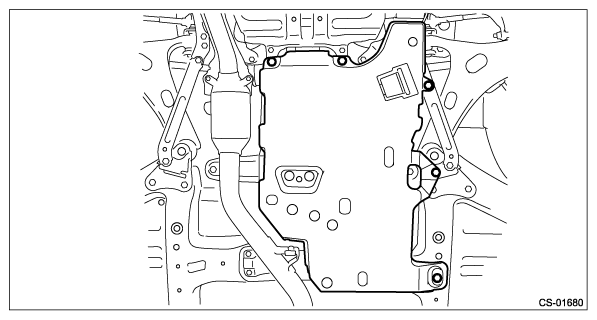

Install the transmission under cover.

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground terminal.
Make sure the gears can be shifted accurately into each gear.
