Select Cable: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (Non-turbo model) Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .
  5. Remove the center exhaust pipe (rear). (Turbo model) Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL .

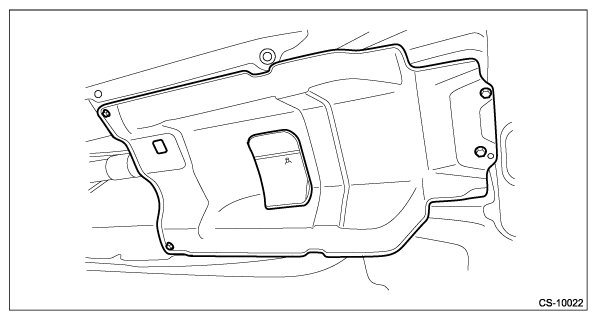

  6. Remove the center exhaust cover.
    G12475862Courtesy of SUBARU OF AMERICA, INC.

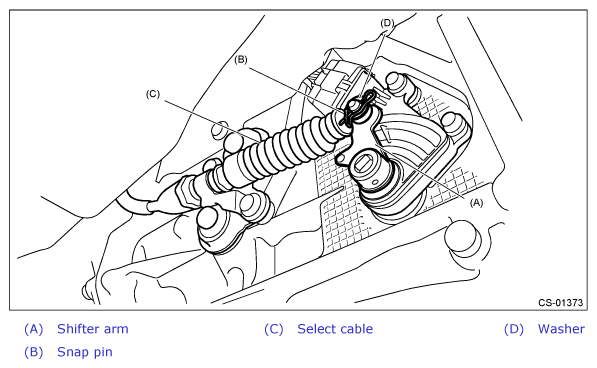

  7. Remove the snap pin and washer from the shifter arm.

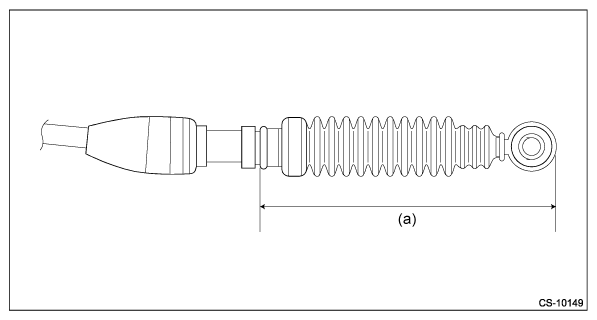

    CAUTION: Do not apply excessive load while holding the part (a).
    G12475863Courtesy of SUBARU OF AMERICA, INC.
    G12475864Courtesy of SUBARU OF AMERICA, INC.

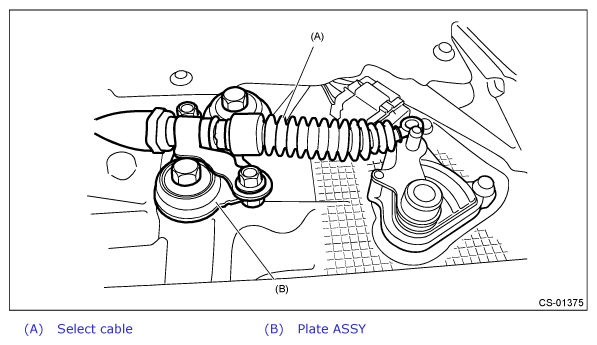

  8. Remove the plate assembly from the transmission case.
    G12475865Courtesy of SUBARU OF AMERICA, INC.

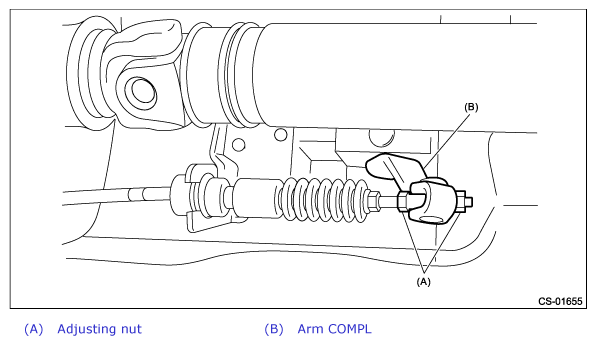

  9. Disconnect the cable from arm COMPL.

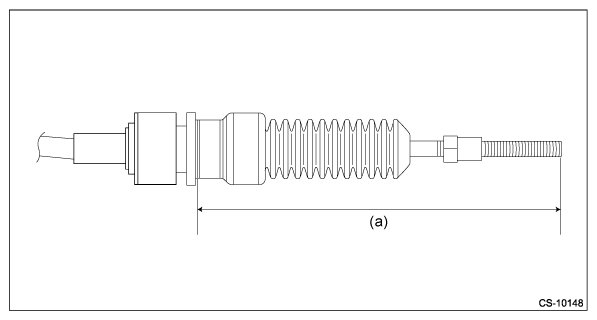

    CAUTION: Do not apply excessive load while holding the part (a).
    G12475866Courtesy of SUBARU OF AMERICA, INC.
    G12475867Courtesy of SUBARU OF AMERICA, INC.

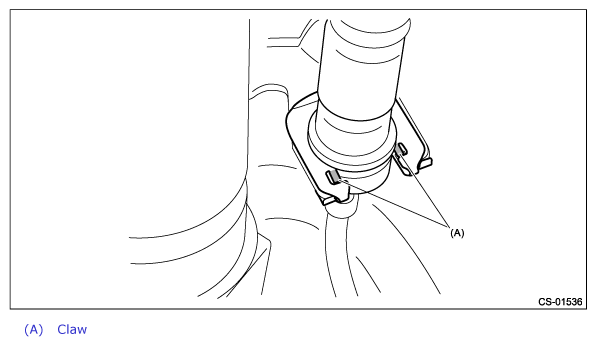

  10. Raise the claw of clamp to remove the cable from bracket.
    G12475868Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
