Select Lever: Removal

  1. Shift the select lever to "N" range.
  2. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  3. Lift up the vehicle.
  4. Remove the center exhaust pipe. (Non-turbo model) Ref. to EXHAUST (H4DO)>Center Exhaust Pipe>REMOVAL .
  5. Remove the center exhaust pipe (rear). (Turbo model) Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL .

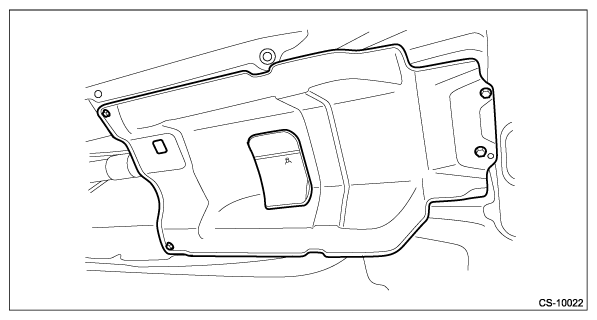

  6. Remove the center exhaust cover.
    G12475811Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the cable from the arm COMPL.
    CAUTION: Do not apply excessive load while holding the part (a).

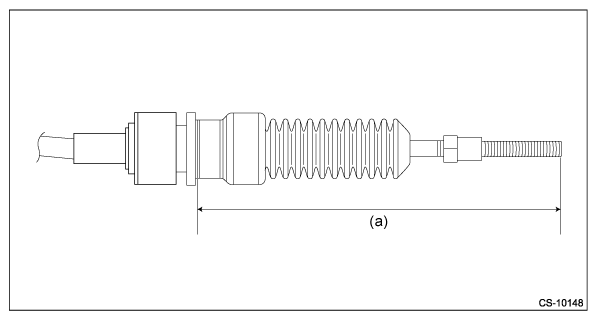

    G12475812Courtesy of SUBARU OF AMERICA, INC.

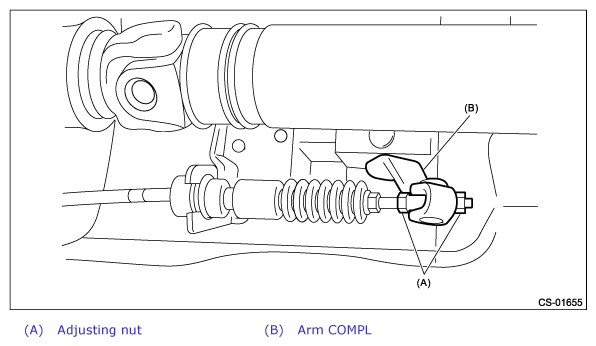

    G12475813Courtesy of SUBARU OF AMERICA, INC.
  8. Raise the claw of clamp and remove the cable.

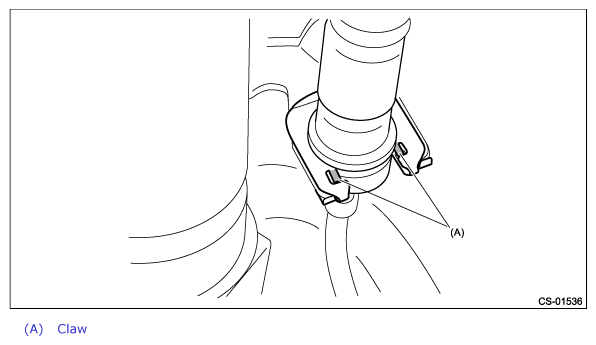

    G12475814Courtesy of SUBARU OF AMERICA, INC.
  9. Lower the vehicle.
  10. Shift the select lever to "N" range.
  11. Lower the boot assembly vertically toward the lever. (Model with boot shifter)
    G12475815Courtesy of SUBARU OF AMERICA, INC.

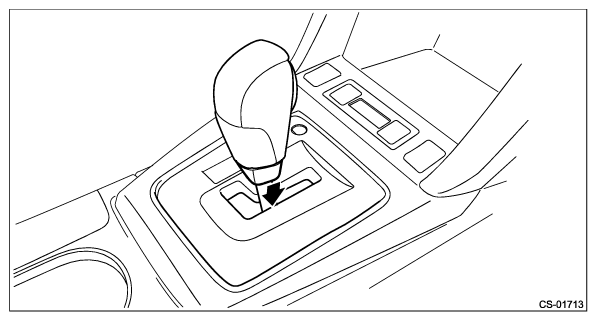

  12. Lower the cover grip AT vertically toward the lever. (Model with gate shifter)
    G12475816Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the clamp grip pin.
    • Model with boot shifter

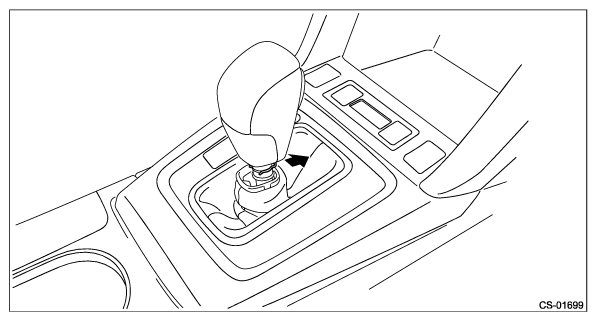

      G12475817Courtesy of SUBARU OF AMERICA, INC.

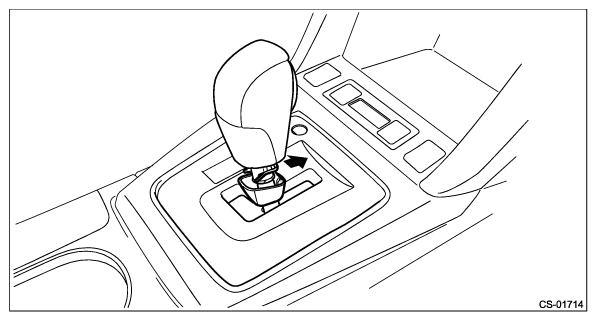

    • Model with gate shifter
      G12475818Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the grip assembly.
    • Model with boot shifter

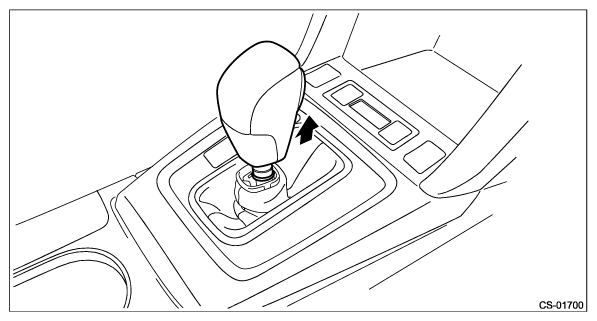

      G12475819Courtesy of SUBARU OF AMERICA, INC.
    • Model with gate shifter

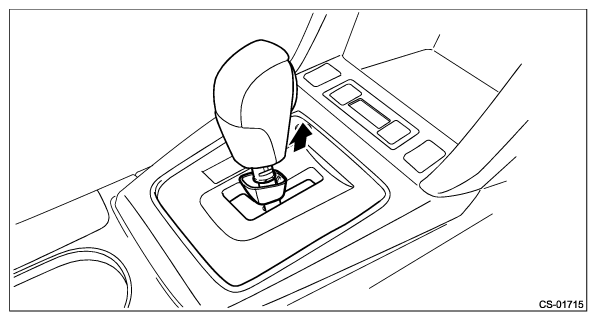

      G12475820Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the ornament panel - consoles LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  16. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .
  17. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

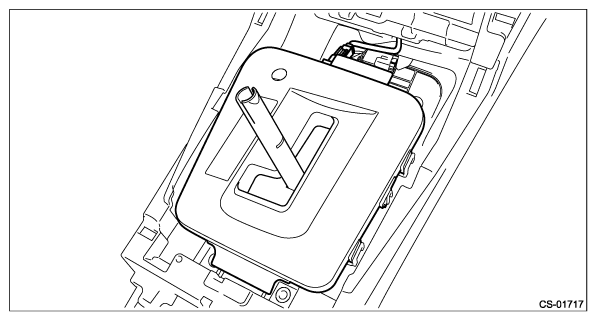

  18. Disconnect the connector, and remove the indicator cover from the housing. (Model with gate shifter)
    G12475821Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL .

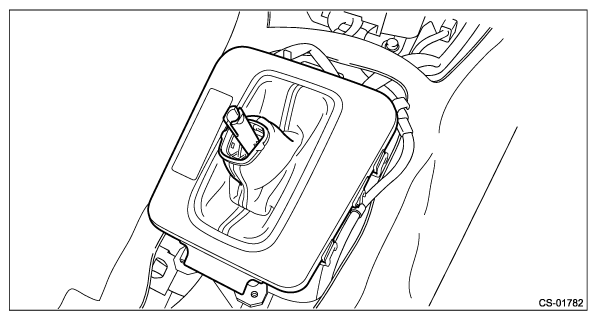

  20. Disconnect the connector, and remove the indicator assembly. (Model with boot shifter)
    G12475822Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the housing with the blind A and blind B. (Model with gate shifter)

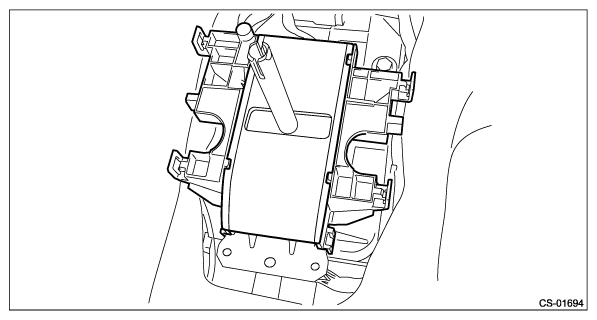

    G12475823Courtesy of SUBARU OF AMERICA, INC.

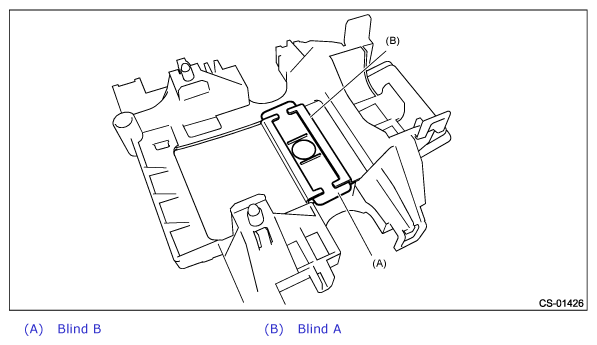

  22. Remove the blind B. (Model with gate shifter)
    G12475824Courtesy of SUBARU OF AMERICA, INC.

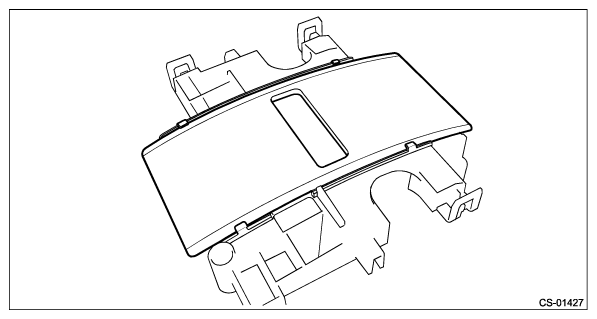

  23. Remove the blind A from the housing. (Model with gate shifter)
    G12475825Courtesy of SUBARU OF AMERICA, INC.

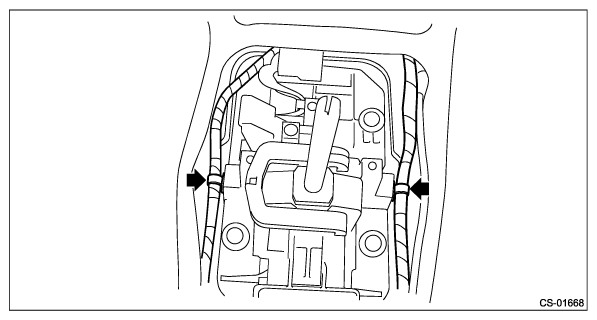

  24. Remove the harness clip from the select lever assembly.
    G12475826Courtesy of SUBARU OF AMERICA, INC.
  25. Disconnect the harness connector.

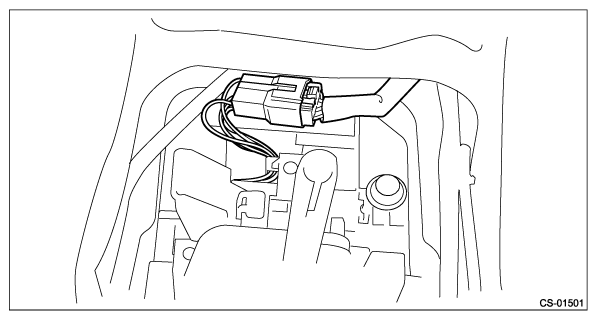

    G12475827Courtesy of SUBARU OF AMERICA, INC.
  26. Remove the four bolts to remove the select lever assembly.

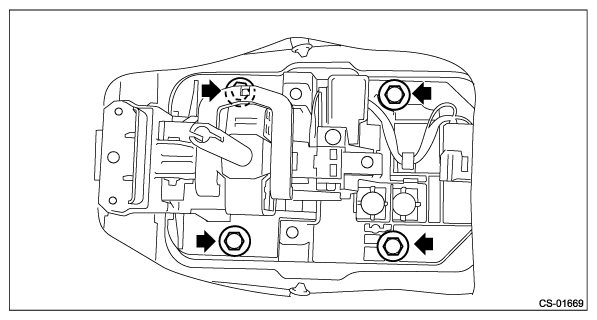

    G12475828Courtesy of SUBARU OF AMERICA, INC.
