Intake Manifold Assembly: Disassembly

  1. Remove the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Throttle Body>REMOVAL
  2. Remove the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR Pipe>REMOVAL
  3. Remove the EGR control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR Control Valve>REMOVAL
  4. Remove the purge control solenoid valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>Purge Control Solenoid Valve>REMOVAL
  5. Remove the manifold absolute pressure sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Manifold Absolute Pressure Sensor>REMOVAL
  6. Remove the fuel delivery pipe assembly from the intake manifold assembly.

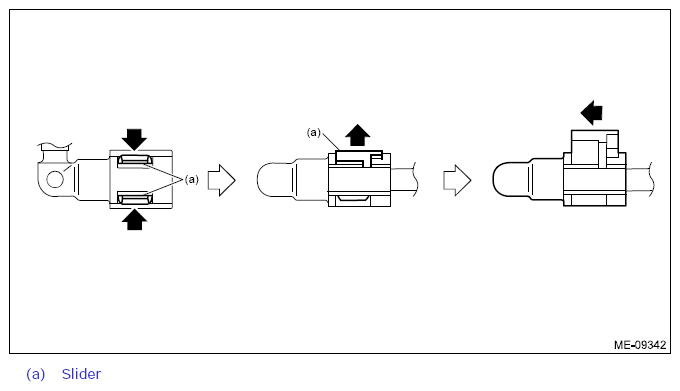

    NOTE: Disconnect the quick connector as shown in the figure.
    G12403269Courtesy of SUBARU OF AMERICA, INC.
    G10262143Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the fuel pipe assembly from the intake manifold assembly.
    G10262145Courtesy of SUBARU OF AMERICA, INC.
