Camshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. (RH side only) Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL
  3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

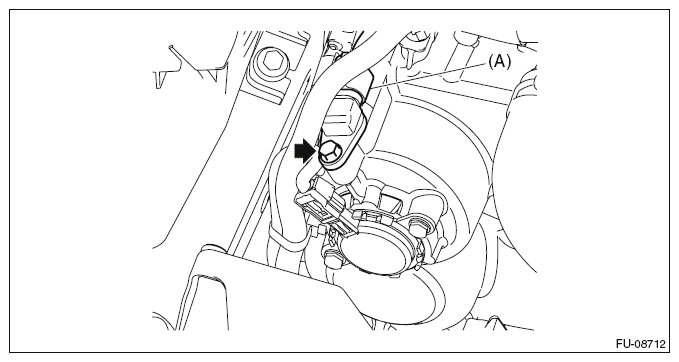

    • RH side
      G10262164Courtesy of SUBARU OF AMERICA, INC.

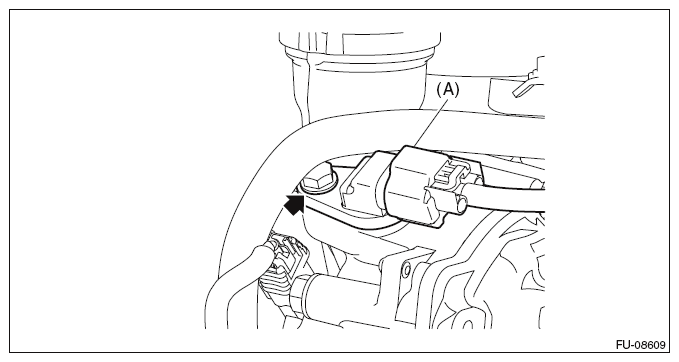

    • LH side
      G10262165Courtesy of SUBARU OF AMERICA, INC.
