Crankshaft Position Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.
    G11565902Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.
    G11565903Courtesy of SUBARU OF AMERICA, INC.

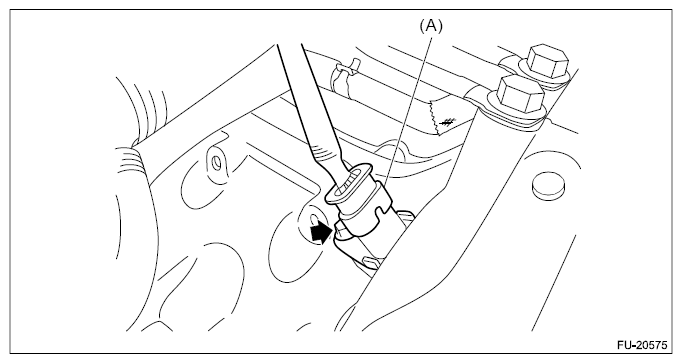

  4. Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
    G12403291Courtesy of SUBARU OF AMERICA, INC.
