Engine Coolant Temperature Sensor: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
- Drain engine coolant. Ref. to COOLING(H4DO)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT

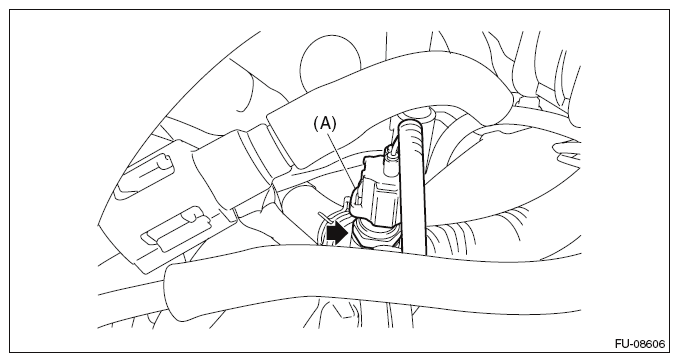

- Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.
