Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.

NOTE:

If the clip is damaged, replace it with a new part.

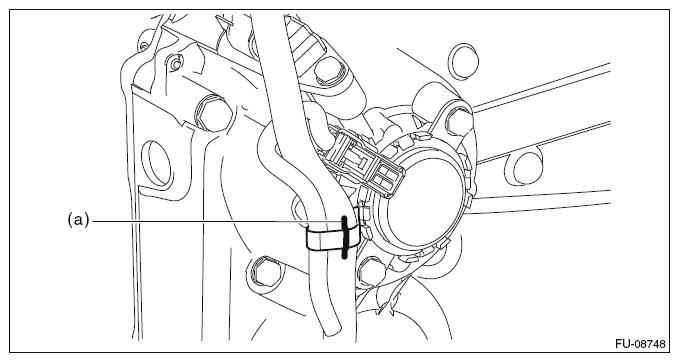

Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.

Courtesy of SUBARU OF AMERICA, INC.

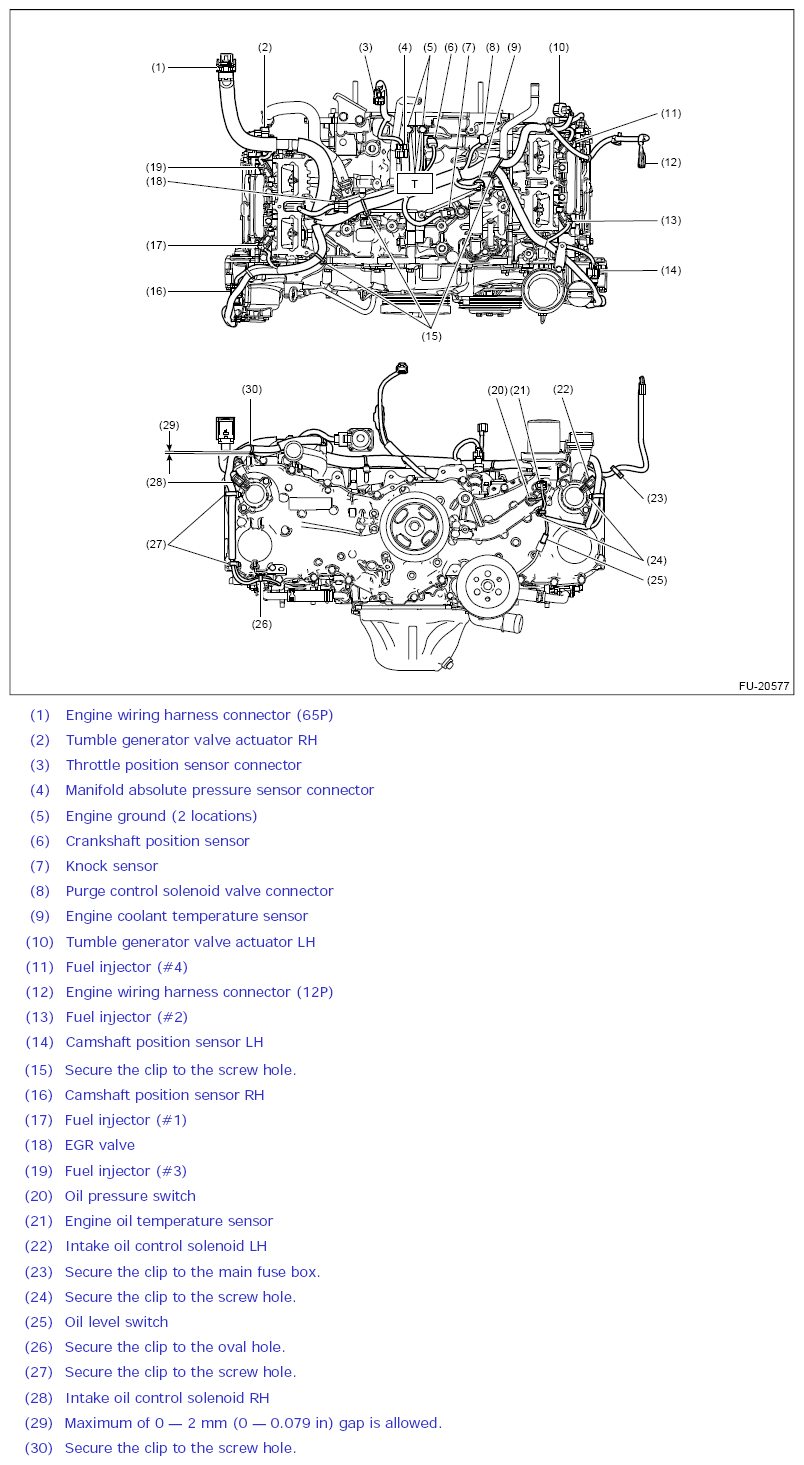

Structural diagram 1

Courtesy of SUBARU OF AMERICA, INC.

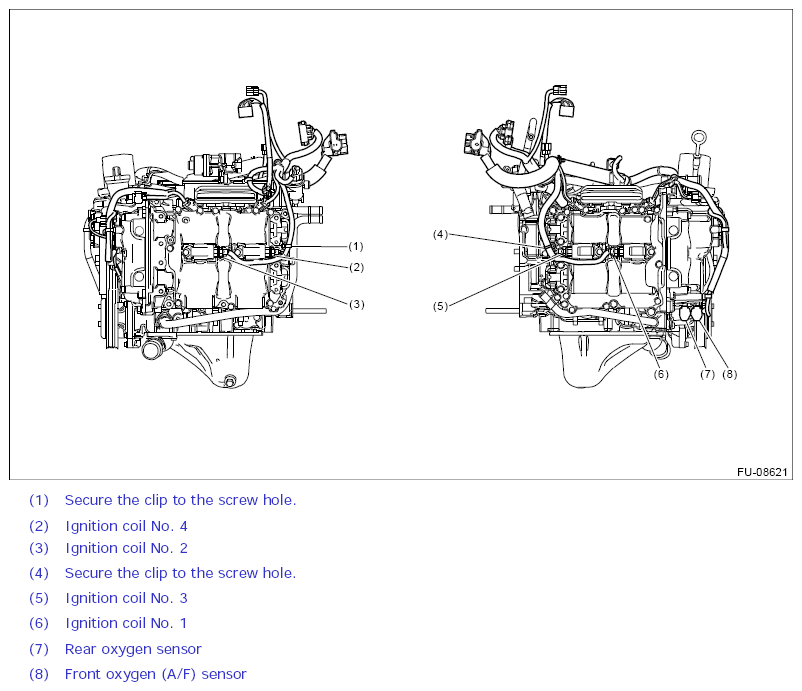

Structural diagram 2

Courtesy of SUBARU OF AMERICA, INC.

Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>INSTALLATION
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
