Fuel Filler Pipe: Installation

Open the fuel filler lid.
Insert the fuel filler pipe from inside of the rear fender.

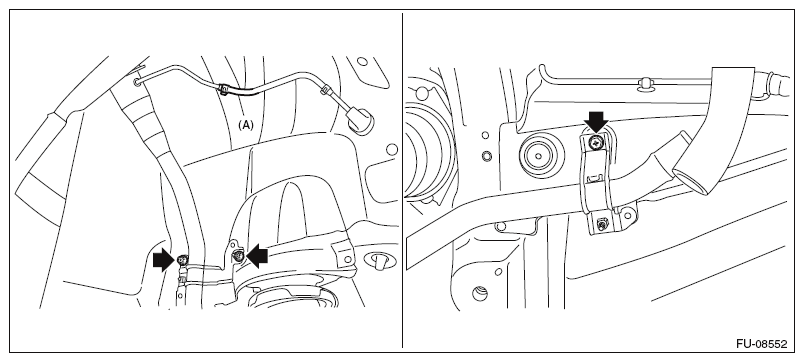

Install the fuel filler pipe to the vehicle body and connect the evaporation hose (A) to the fuel filler pipe.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Align the cutout on the fuel filler pipe protector and the protrusion of the neck holder and insert them all the way, and then turn the fuel filler pipe protector in the direction of the arrow until it is locked.

Courtesy of SUBARU OF AMERICA, INC.

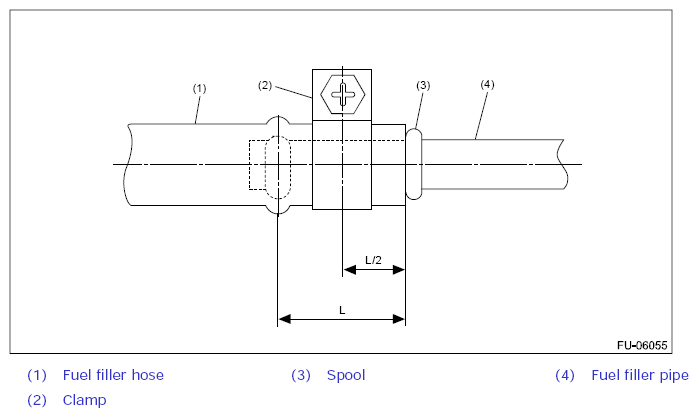

Correctly insert the fuel filler hose to the spool, and then install the clamp as shown.
Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear mud guard RH. Ref. to EXTERIOR/INTERIOR TRIM>Mud Guard>INSTALLATION
Install the rear sub frame assembly. Ref. to REAR SUSPENSION>Rear Sub Frame>INSTALLATION
