Fuel Injector: Inspection

  1. Check that the fuel injector has no deformation, cracks or other damages.

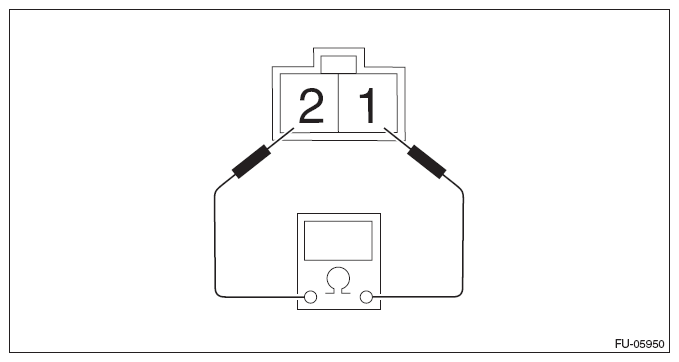

  2. Measure the resistance between fuel injector terminals.
    G08315385Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 and 2 Approx. 12.0 Ω (when 20°C (68°F))
