Oil Control Solenoid: Removal

CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. (RH side only) Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL
  3. Disconnect the connector (A) from the intake oil control solenoid, and remove the intake oil control solenoid from the chain cover.

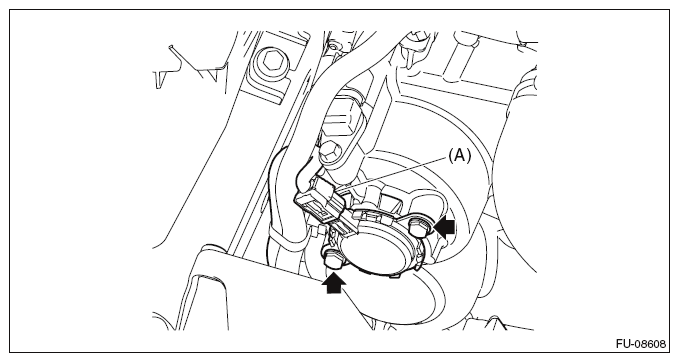

    • RH side
      G10262168Courtesy of SUBARU OF AMERICA, INC.

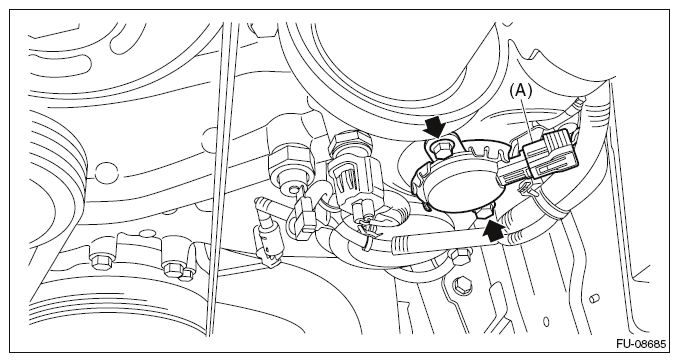

    • LH side
      G10262169Courtesy of SUBARU OF AMERICA, INC.
