Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Disconnect the ground terminal from battery sensor. REPAIR CONTENTS>NOTE>BATTERY
Remove the ECM. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Engine Control Module (ECM)>REMOVAL Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>Engine Control Module (ECM)>REMOVAL
Install the ST between the ECM and bulkhead harness and the engine wiring harness. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>General Description>CAUTION Ref. to ENGINE (DIAGNOSTICS) (H6DO)>General Description>CAUTION
ST 18460AA050 CHECK BOARD
Connect the ground terminal to battery sensor. REPAIR CONTENTS>NOTE>BATTERY
Turn the ignition switch to ON. (Engine OFF)

Measure the voltage between ECM connector terminals using ST.

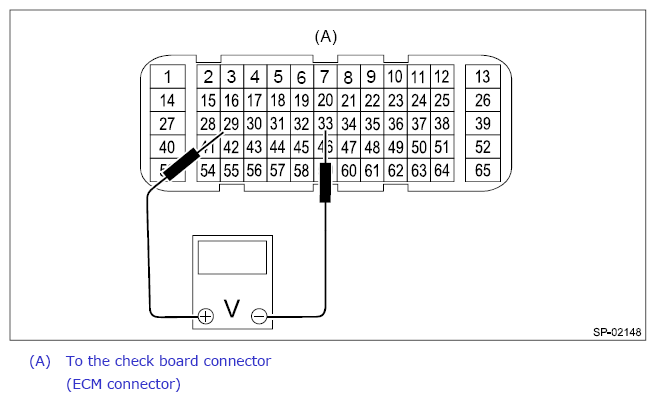

Main sensor side

Courtesy of SUBARU OF AMERICA, INC.

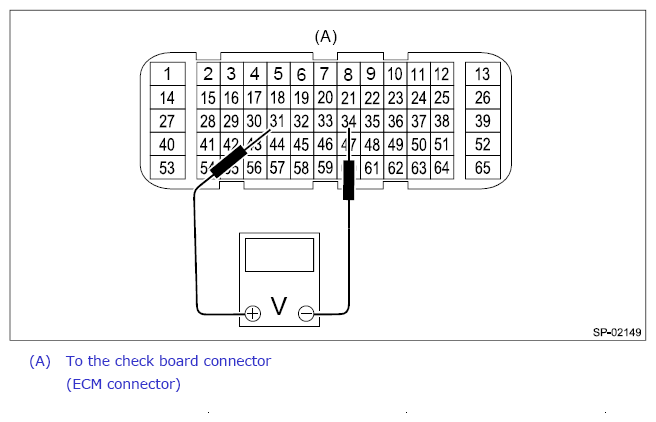

Sub sensor side

Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (full closed)	29 (+) and 33 (-)	0.3 - 1.1 V
Main	Depressed (full opened)	29 (+) and 33 (-)	2.3 - 3.8 V
Sub	Not depressed (full closed)	31 (+) and 34 (-)	0.3 - 1.1 V
Sub	Depressed (full opened)	31 (+) and 34 (-)	2.3 - 3.8 V
