Ignition Coil: Assembly
NOTE:
Perform this procedure only when the protector is damaged.

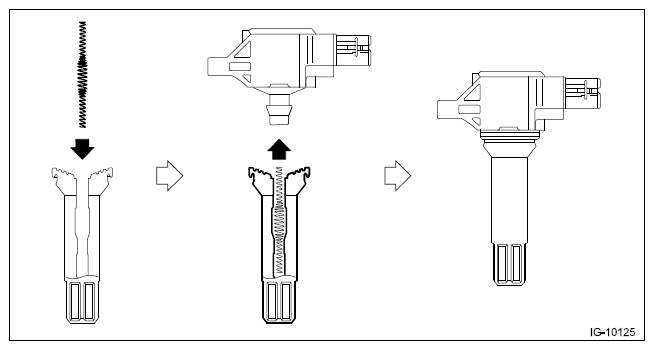

- Insert the spring to the protector, and install the protector assembly to the ignition coil.
CAUTION:
- Insert the protector assembly until it contacts the ignition coil.
- Never use lubricants.
 Courtesy of SUBARU OF AMERICA, INC.
|
