Engine Control System (Diagnostics - Introduction) (H4DO)
>>
Electrical Component Location
>>
Location
>>

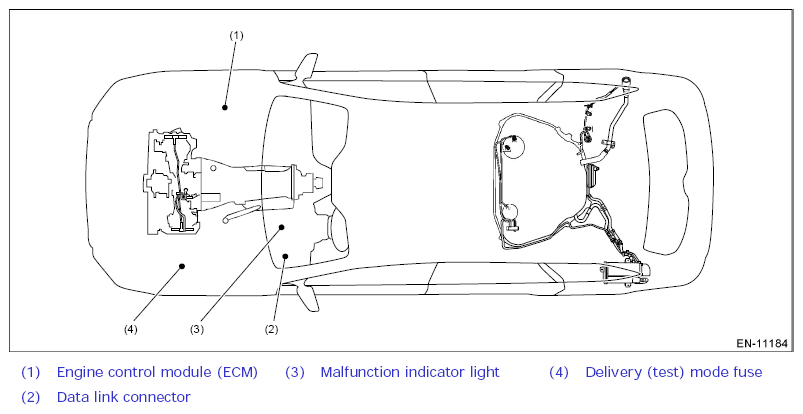

Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

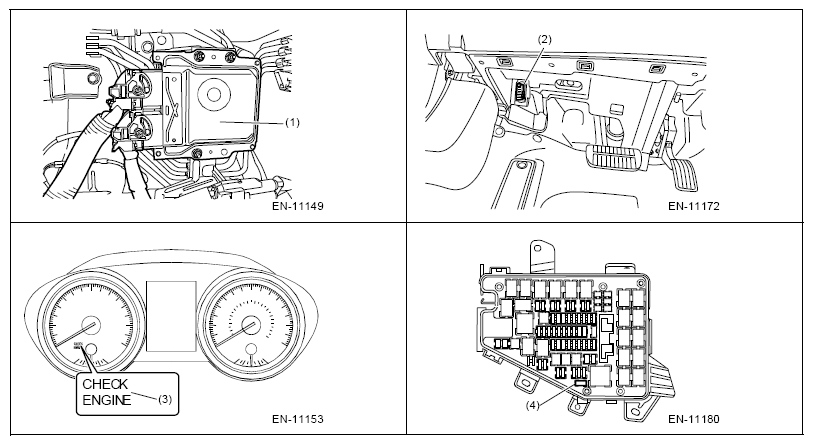

Control Module
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
