Engine Control System (Diagnostics - Introduction) (H4DO): Electrical Component Location: Location: Sensor

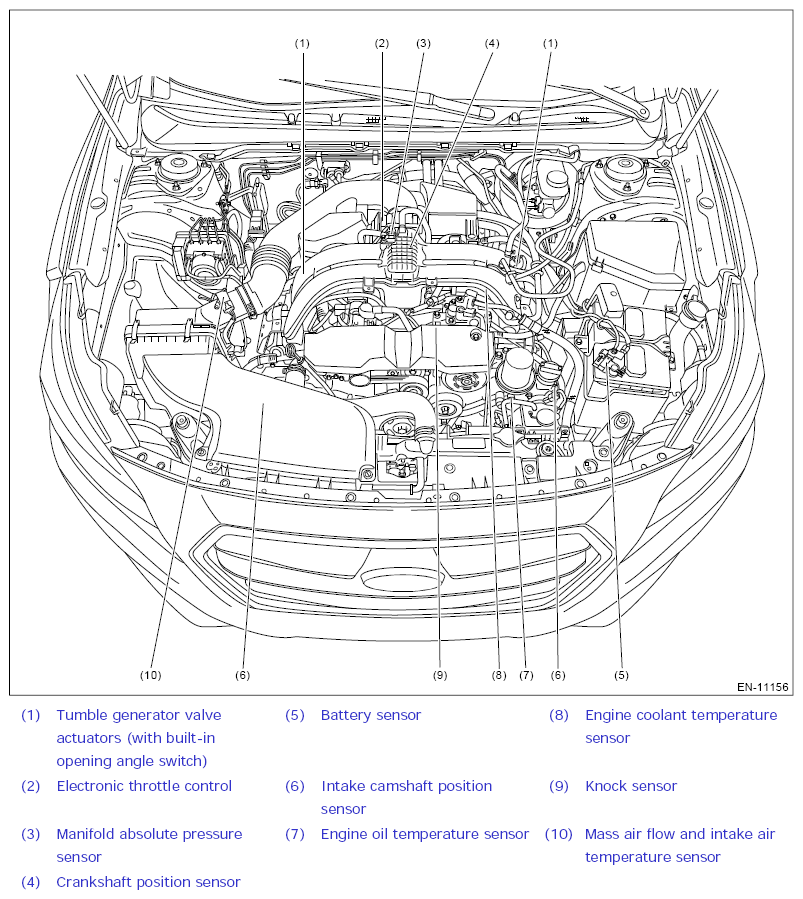

G12411264Courtesy of SUBARU OF AMERICA, INC.

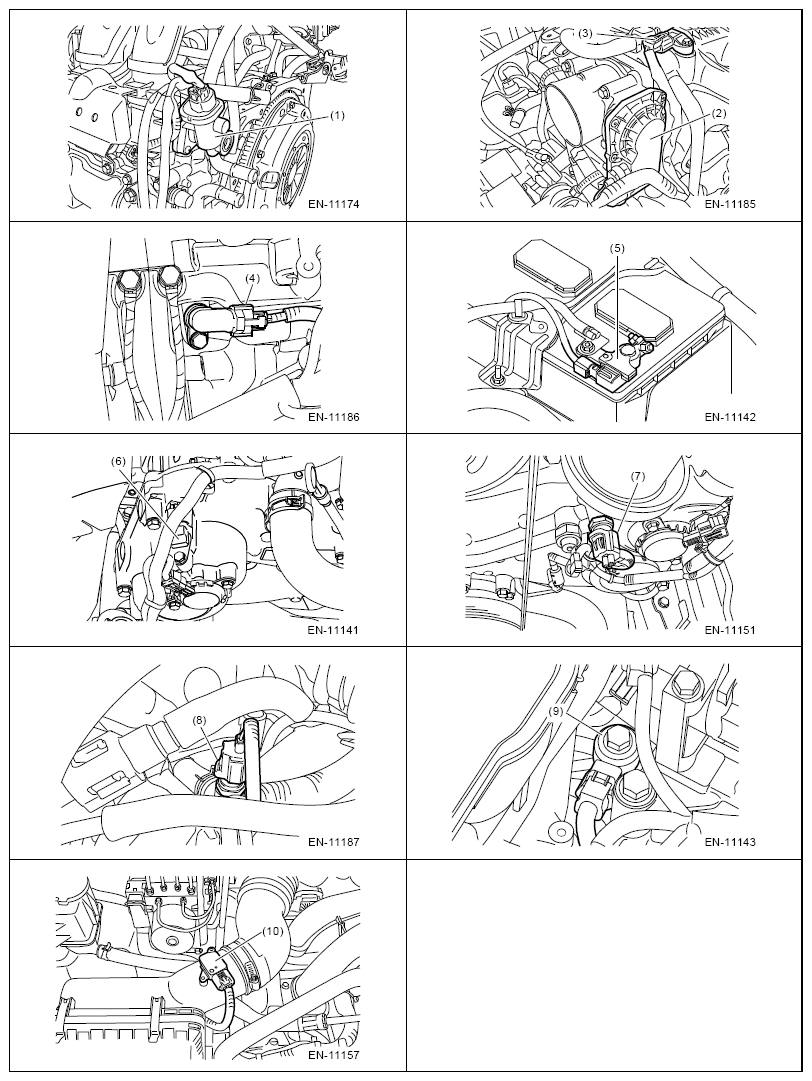

G12411265Courtesy of SUBARU OF AMERICA, INC.

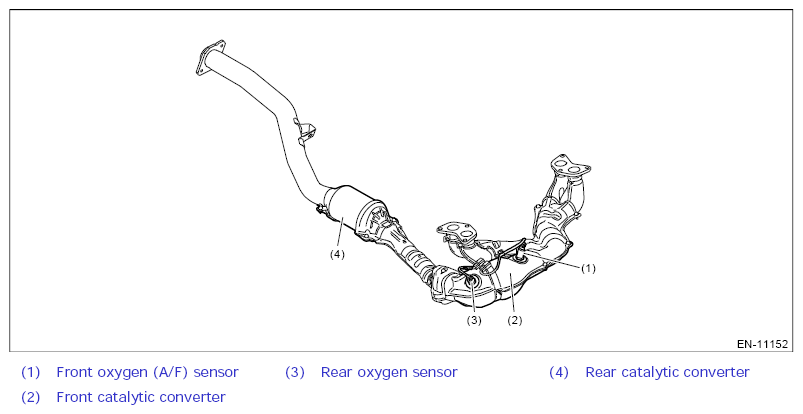

G12411274Courtesy of SUBARU OF AMERICA, INC.

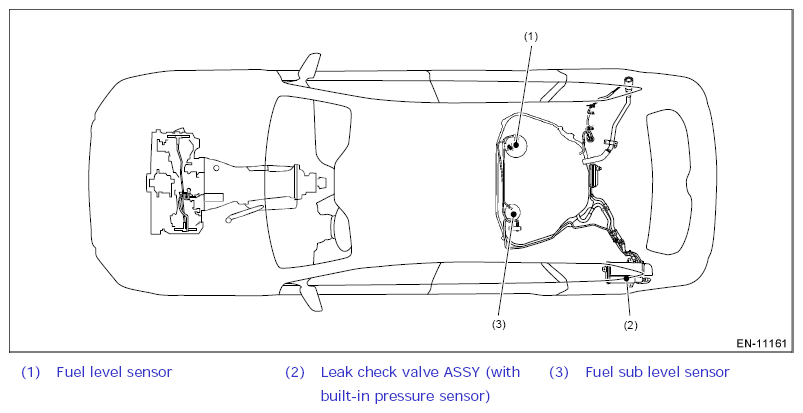

G12411275Courtesy of SUBARU OF AMERICA, INC.

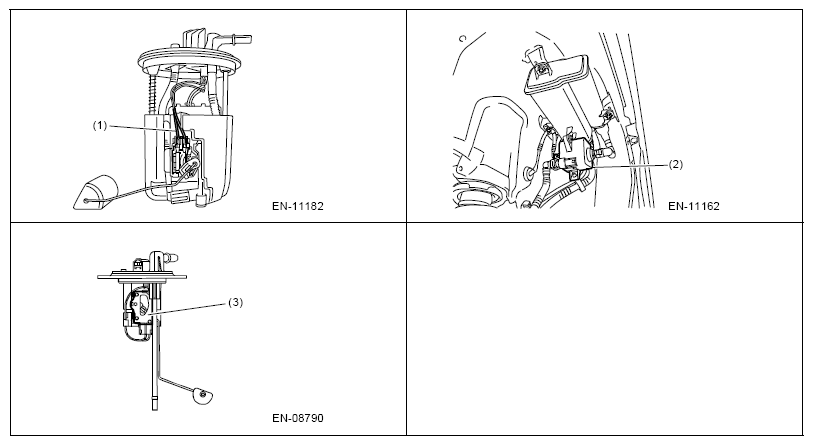

G12411276Courtesy of SUBARU OF AMERICA, INC.
