AT Shift Lock Solenoid and "P" Range Switch: Installation

Clean all the parts before assembly.
Insert the solenoid unit terminals to the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the solenoid unit.
NOTE:
- Insert the solenoid unit while raising the shift lock plate upward by finger, and insert the tip of cushion solenoid into the hole of shift lock plate.
- Apply 0.2 g (0.007 oz) of Multemp D to the tip of cushion solenoid.

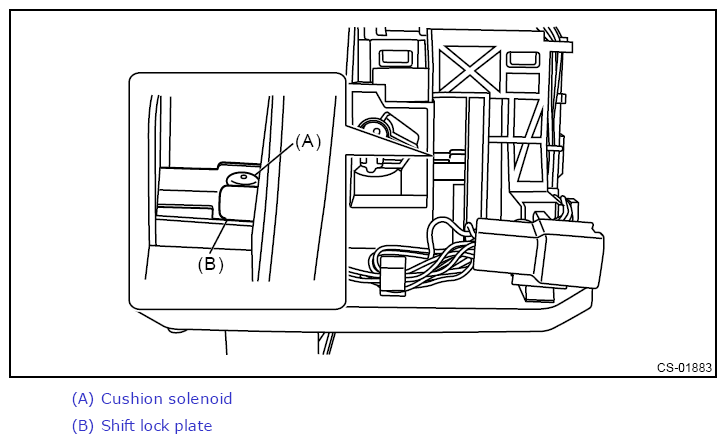

- After installation, make sure that the tip of cushion solenoid is securely inserted in the shift lock plate by visually checking from the side of plate COMPL.
Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the harness to the select cover COMPL.

Courtesy of SUBARU OF AMERICA, INC.
Attach the harness connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the spacer and the gasket. Ref. to CONTROL SYSTEMS>Select Lever>INSTALLATION .
Install the select lever. Ref. to CONTROL SYSTEMS>Select Lever>INSTALLATION .
