Exhaust Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the under cover. Ref. to EXTERIOR/INTERIOR TRIM>Front Under Cover>REMOVAL .
  4. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor.
    • RH side
      G10263579Courtesy of SUBARU OF AMERICA, INC.

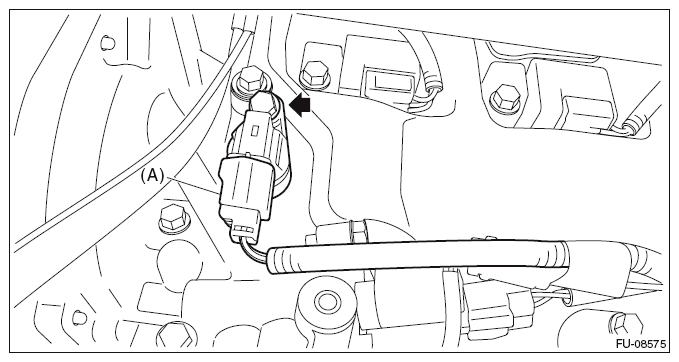

    • LH side
      G10263580Courtesy of SUBARU OF AMERICA, INC.
