LH Side

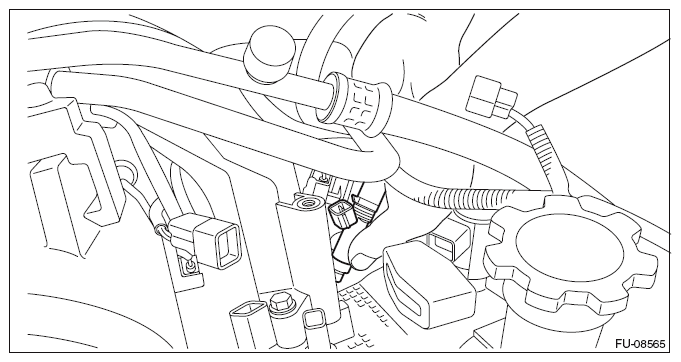

Set the fuel injector to the fuel injector pipe LH, and install the fuel injector pipe LH and fuel injector as a unit to the cylinder head.
NOTE: Use new O-rings, rubbers and seal rings.

Courtesy of SUBARU OF AMERICA, INC.

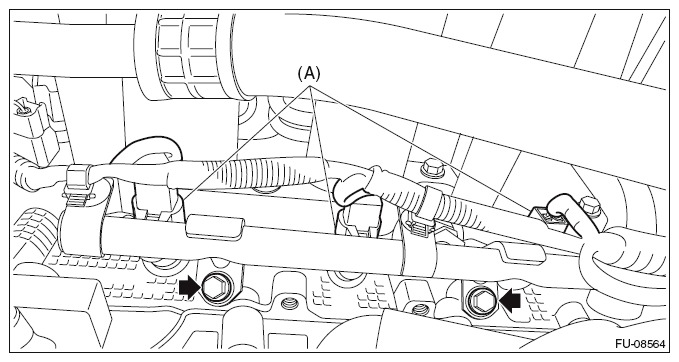

Install the bolts securing the fuel injector pipe to the cylinder head, and connect the connector (A) to the fuel injector.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

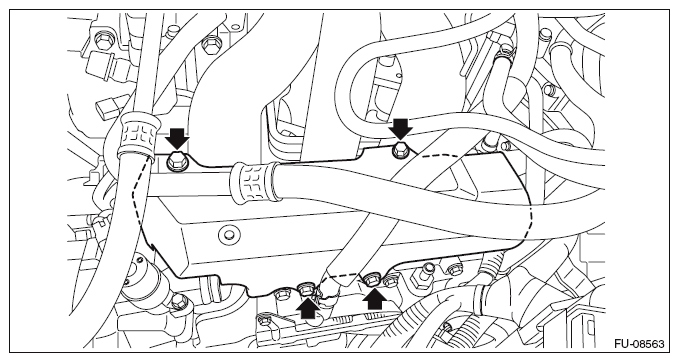

Install the fuel pipe protector RH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

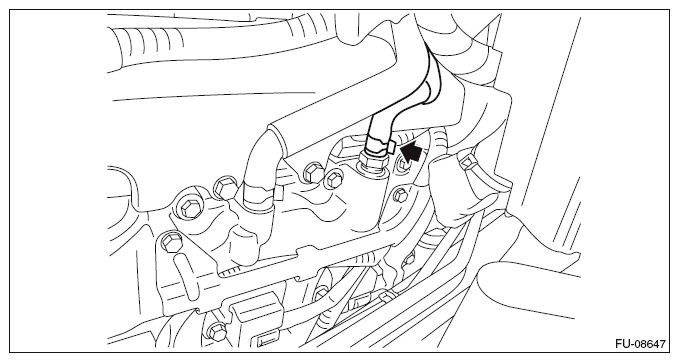

Connect the PCV hose.

Courtesy of SUBARU OF AMERICA, INC.

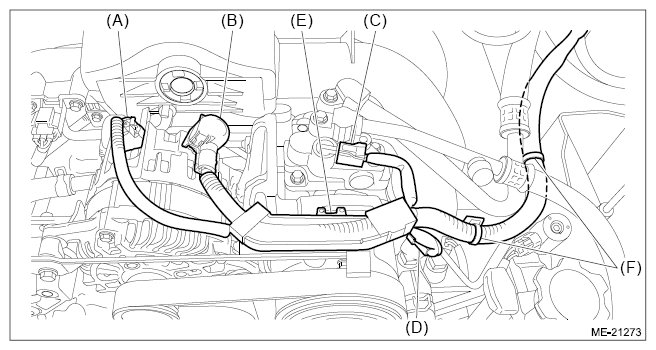

Install the clip (F) securing the generator cord to the fuel pipe protector LH.
Connect the connectors (C) and (D) to the A/C compressor and attach the generator cord to clip (E).
Connect the connector (A) and terminal (B) to the generator.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the collector cover.
