Intake Side

  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
      G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Disconnect the connector (A) from the intake oil flow control solenoid valve, and remove the intake oil flow control solenoid valve.

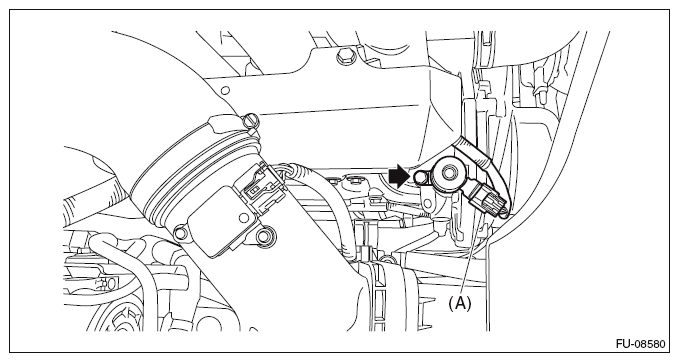

    • RH side
      G10263618Courtesy of SUBARU OF AMERICA, INC.

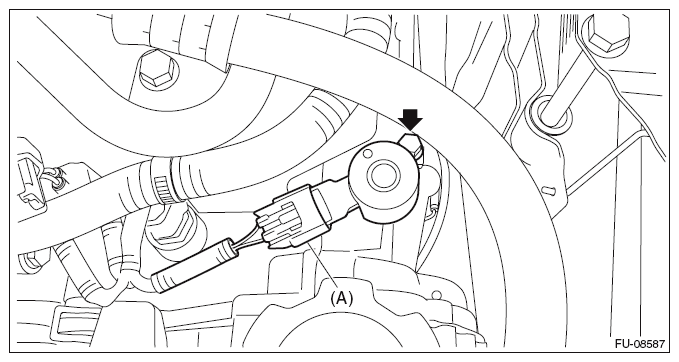

    • LH side
      G10263619Courtesy of SUBARU OF AMERICA, INC.
