Pulsation Damper RH

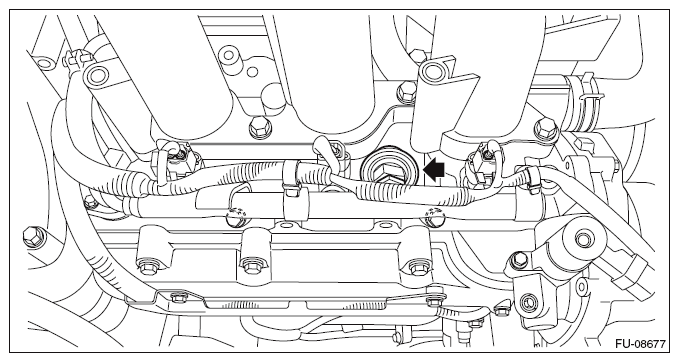

Install the pulsation damper RH to the fuel injector pipe RH.
NOTE: Use a new gasket.

Tightening torque:

21.6 N.m (2.2 kgf-m, 15.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe protector RH.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H6DO)>Air Intake Boot>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the collector cover.
