Engine Control System (Diagnostics - Introduction) (H6DO): Electrical Component Location: Location: Sensor

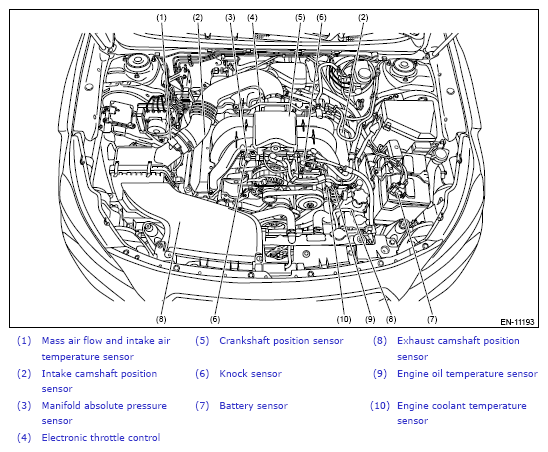

G12410005Courtesy of SUBARU OF AMERICA, INC.

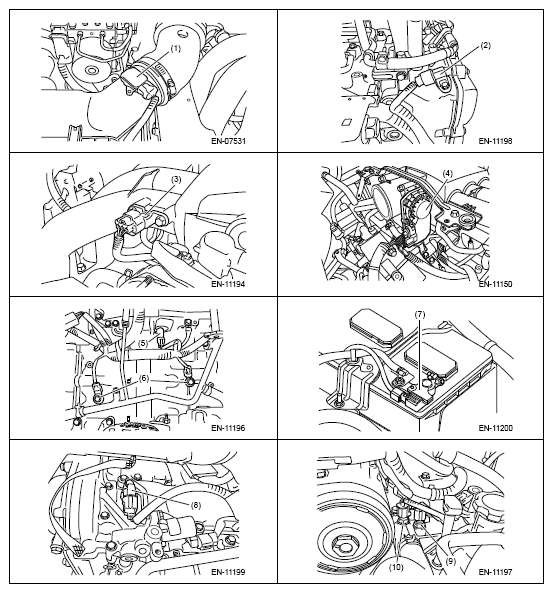

G12410003Courtesy of SUBARU OF AMERICA, INC.

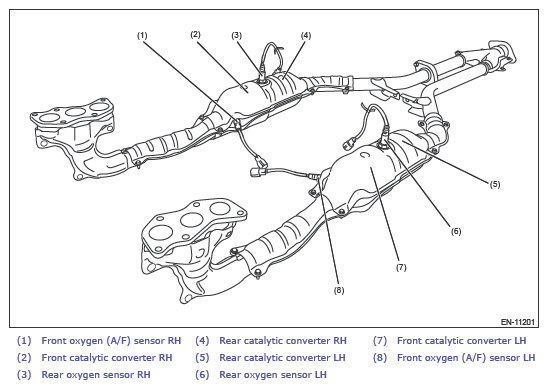

G12410014Courtesy of SUBARU OF AMERICA, INC.

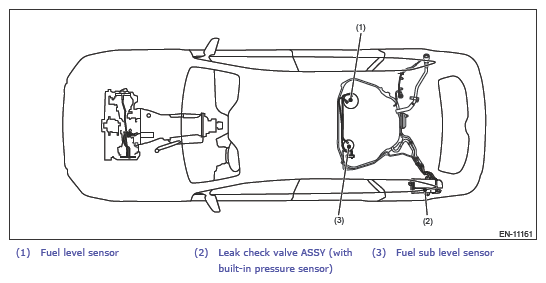

G12410015Courtesy of SUBARU OF AMERICA, INC.

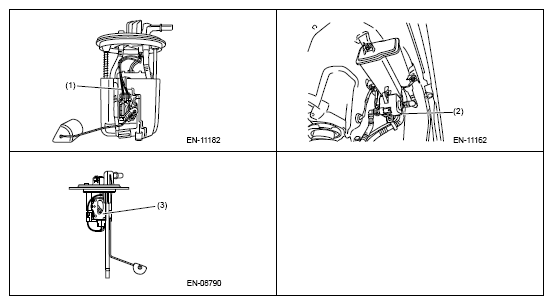

G12410004Courtesy of SUBARU OF AMERICA, INC.
