Front Oxygen (A/F) Sensor: Inspection

  1. Check that the front oxygen (A/F) sensor has no deformation, cracks or other damages.

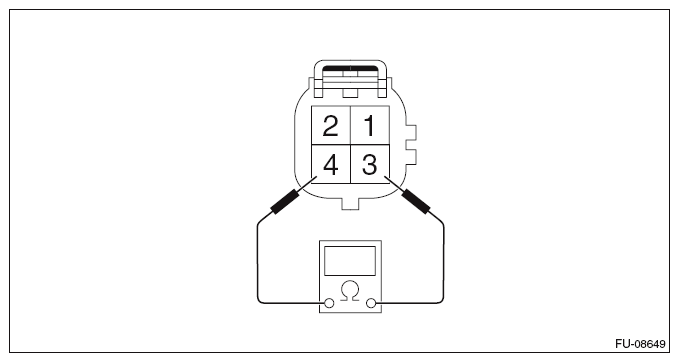

  2. Measure the resistance between front oxygen (A/F) sensor terminals.
    G10263630Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    3 and 4 2.0+0.42-0.2 Ω (when 20°C (68°F))
