Data Communication Module

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL
  4. Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL
  5. Remove the center grille assembly. Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>Air Vent Grille>REMOVAL>CENTER GRILLE ASSEMBLY
  6. Remove the audio assembly or navigation assembly. Ref. to ENTERTAINMENT & MONITORING>Audio>REMOVAL

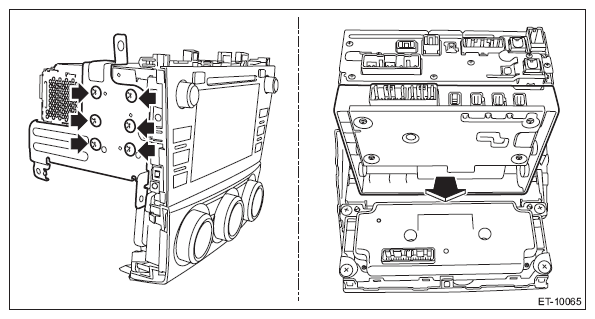

  7. Remove the data communication module.
    1. Remove the screws.
    2. Remove the audio bracket or navigation bracket, and then remove the data communication module.
      CAUTION: Do not drop or apply any impact to the data communication module.
      G10319554
