Auto Vehicle Hold Switch: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
  2. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL>MODEL WITH PARKING BRAKE LEVER .
  3. Remove the parking brake switch. Ref. to PARKING BRAKE>Parking Brake Switch>REMOVAL .

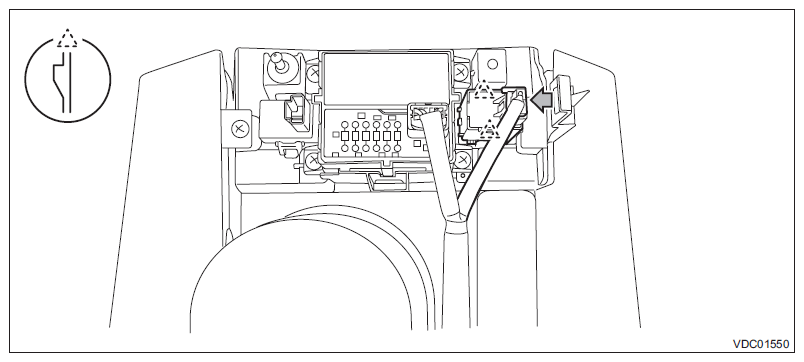

  4. Disconnect the connector, and remove the auto vehicle hold switch.
    G11579450
