Relay And Fuse: Location

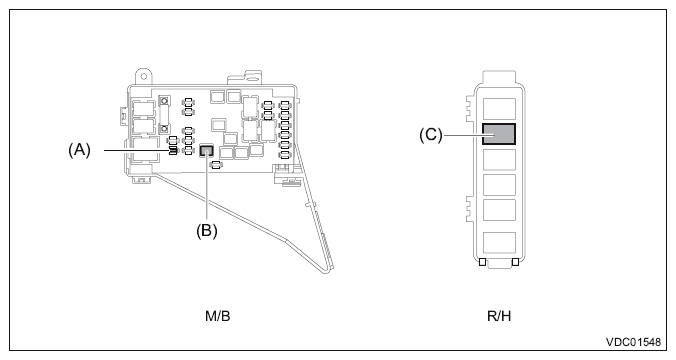

G10297669
Main Fuse Box Fuse 30A (VDC CONTROL MODULE & H/U) (A)
Fuse 40 A (VDC CONTROL MODULE & H/U) (B)
Relay Holder Brake Light Relay(1) (C)
(1) Model with Eye-Sight
NOTE: For other related fuses, refer to the wiring system. Ref. to WIRING SYSTEM>Power Supply Circuit .
