Component With Torque Specification

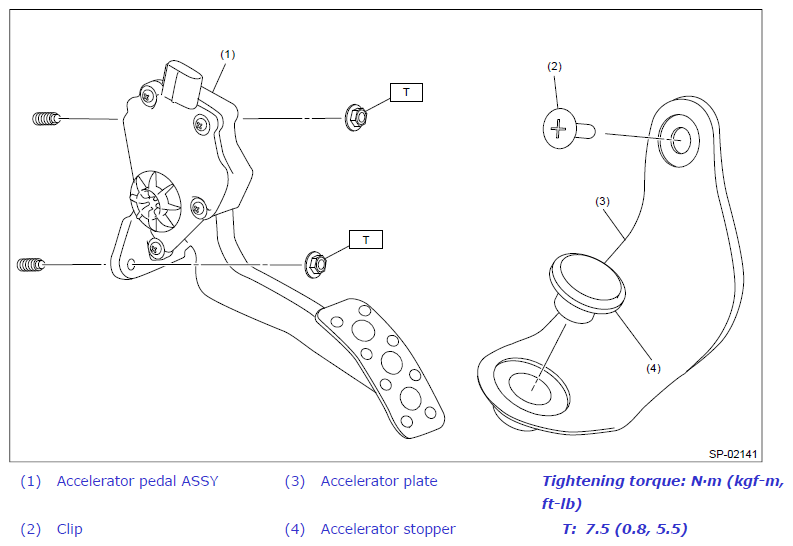

Fig 1: Accelerator Pedal Components
G12443006Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N7m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
