Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.
- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

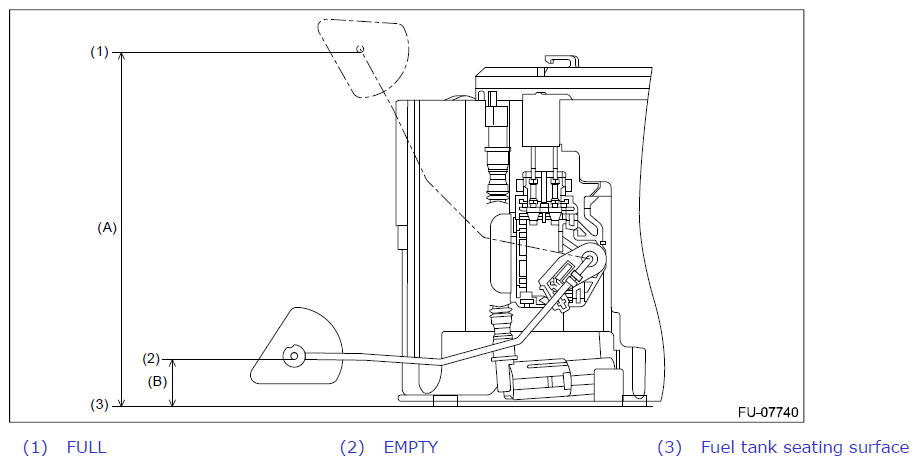

FLOAT POSITION STANDARD FULL to Fuel tank seating surface (A) 133.0±4 mm (5.236±0.157 in) EMPTY to Fuel tank seating surface (B) 21.6±4 mm (0.850±0.157 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
FLOAT POSITION TERMINAL NO. STANDARD FULL (A) 1 and 2 8.7±1.0 Ω EMPTY (B) 139.1±2.0 Ω
