Fuel Level Sensor: Installation

Install in the reverse order of removal.

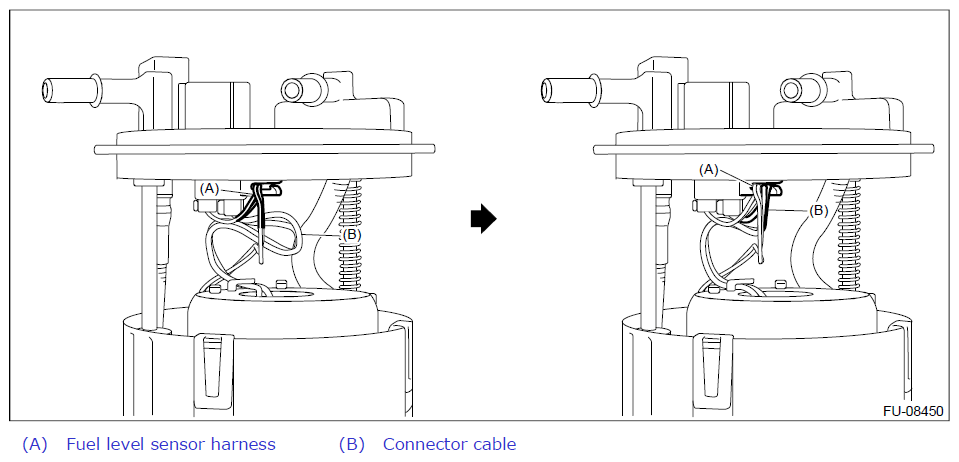

CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.
G12444293
