Drive Cycle S
| DTC | Item | Condition |
|---|---|---|
| P0246 | TURBOCHARGER/SUPERCHARGER WASTEGATE SOLENOID "A" HIGH | - |
| P04AD | EVAP SYSTEM (CPC) PURGE CONTROL VALVE "B" CIRCUIT HIGH | - |
| P0851 | PARK/NEUTRAL SWITCH INPUT CIRCUIT LOW | MT model |
| P0852 | PARK/NEUTRAL SWITCH INPUT CIRCUIT HIGH | MT model |
Diagnostic procedure:
WARNING:
When performing the drive cycle S on the public road, be very careful of the traffic condition and the safe driving must be the high priority.
- Using the Subaru Select Monitor, perform the clear memory for «Engine». Ref. to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>Clear Memory Mode>OPERATION .

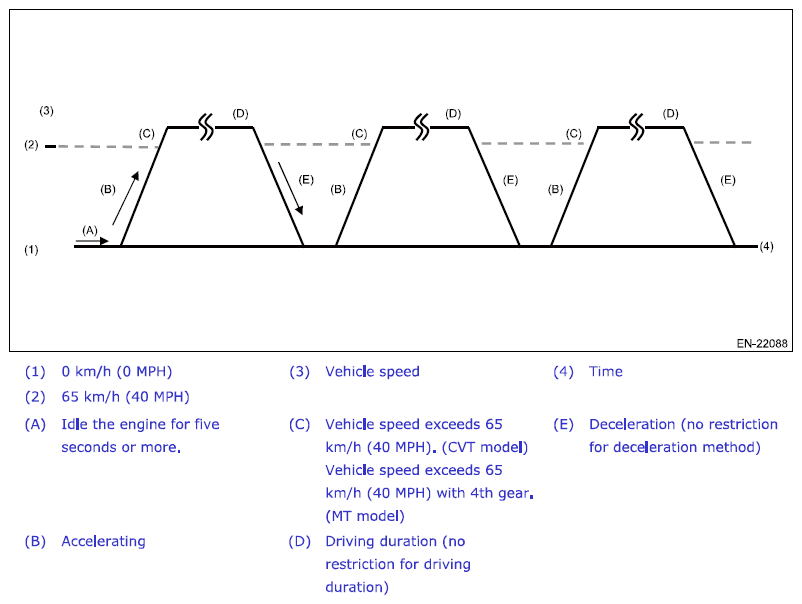

- Drive three times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>Read Diagnostic Trouble Code (DTC)>OPERATION .
