Steering Wheel And Column

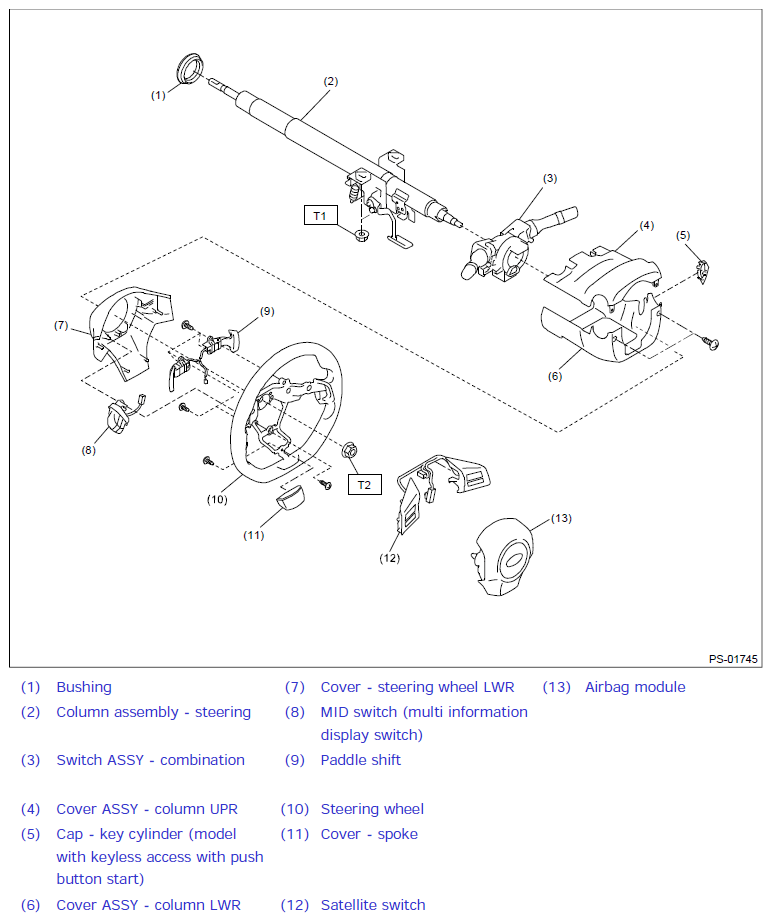

Fig 1: Exploded View Of Steering Wheel And Column Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 20 (2, 14.8)

T2: 39 (4, 28.8)
