Front Strut: Assembly

  1. Before assembly, check each part. Ref. to FRONT SUSPENSION>Front Strut>INSPECTION .
  2. Using a coil spring compressor, compress the coil spring.
    CAUTION: When installing the coil spring compressor to the coil spring, follow the operation service information accompanied with the coil spring compressor during operation.

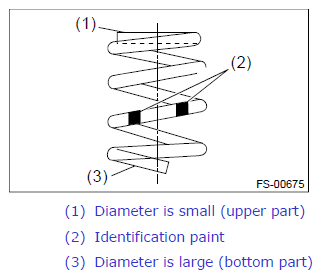

    NOTE: Make sure that the vertical install direction of the coil spring is as shown in the figure.
    G12443180

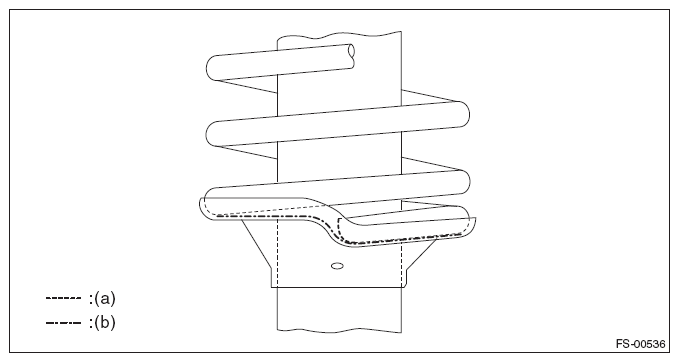

  3. Set the coil spring correctly so that its end face (a) contacts the vertical surface (b) of the spring seat - front strut LWR as shown in the figure.
    G08318329
  4. Install the dust cover - inner and the helper - front strut to the piston rod.
  5. Pull the piston rod fully upward, and install the spring seat and the dust cover - front strut.

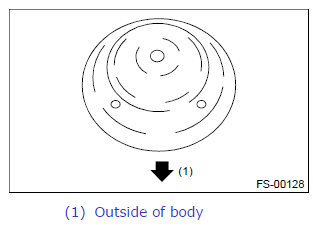

    NOTE: Position the spring seat - front strut UPR as shown in the figure.
    G12443182
  6. Install the spacer - front strut and the strut mount - front to the piston rod, and temporarily tighten a new self-locking nut.
  7. Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
    CAUTION: Make sure that the strut mount - front turns smoothly after tightening.

    Preparation tool:

    ST: STRUT MOUNT SOCKET (20399AG000)

    G10276647

    Tightening Torque:

    55 N.m (5.6 kgf-m, 40.6 ft-lb)

  8. Loosen the coil spring compressor carefully.
