STI Model
REAR WHEEL ALIGNMENT SPECIFICATION
| Tire size | 245/40R18 | 245/35R19 | |
| Wheel arch height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) |
mm (in) | 362 (14.25) | |
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -1°40' | ||
| Toe-in | mm (in) | IN3±3 (IN0.12±0.12) | |
| Toe angle (sum of both wheels): IN0°16'±16' | |||
| Thrust angle (tolerance: 0°00'±30') | 0°00' | ||
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration.
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.

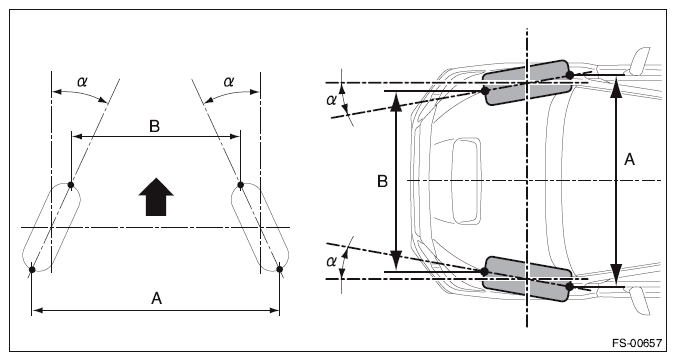

A - B = Positive: Toe-In, Negative: Toe-Out
a = Individual Toe Angles
