6MT Gear Shift Lever (Except For STI Model)

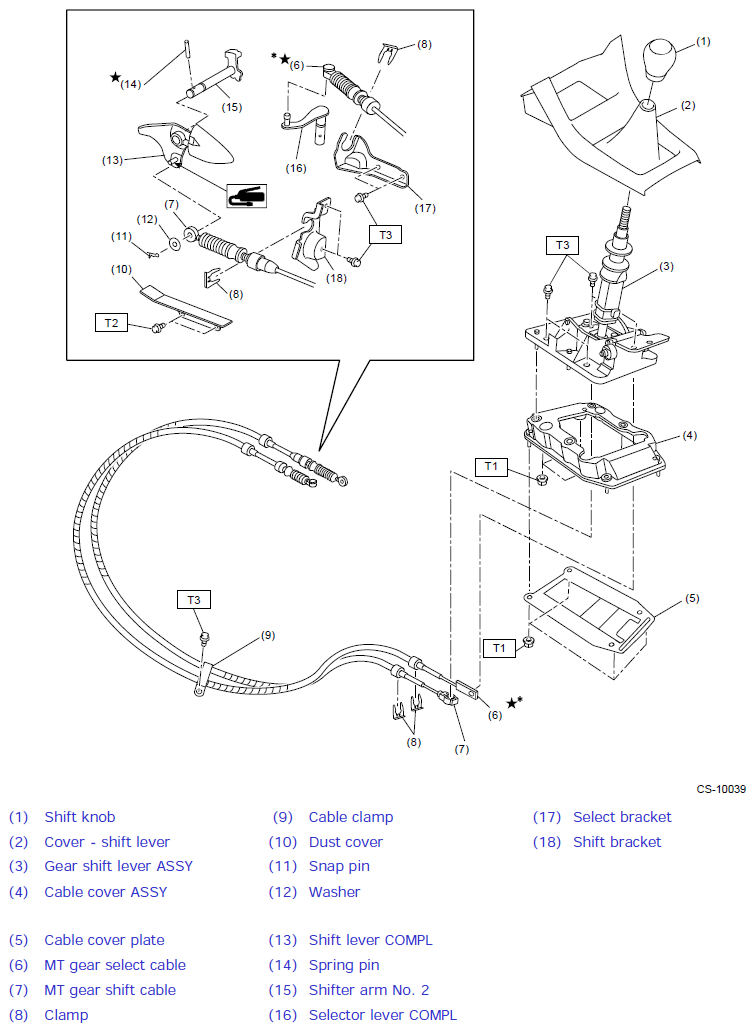

Fig 1: Exploded View Of 6MT Gear Shift Lever (Except For STI Model) Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

*: Always use new MT gear select cable if the cable is removed from Select Lever COMPL of Transmission side.
