- Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
NOTE:
For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>REMOVAL
- Remove the center exhaust cover.

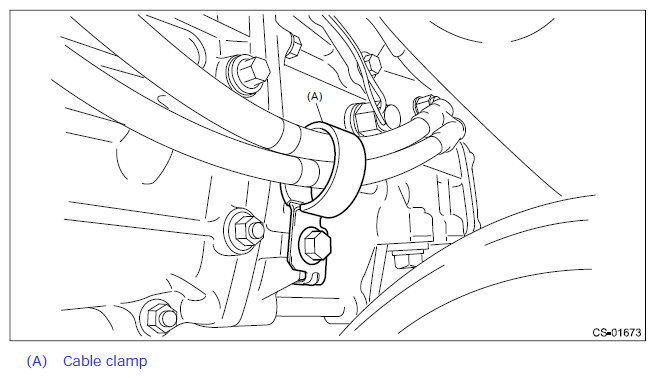

- Remove the cable clamp.

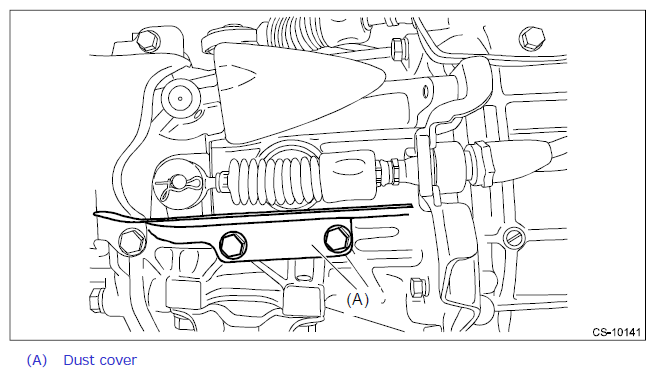

- Remove the dust cover.
- Remove the snap pin and washer.

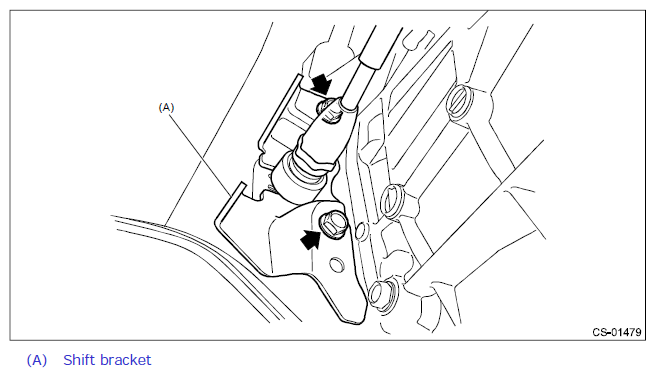

- Remove the bolts holding the shift bracket.

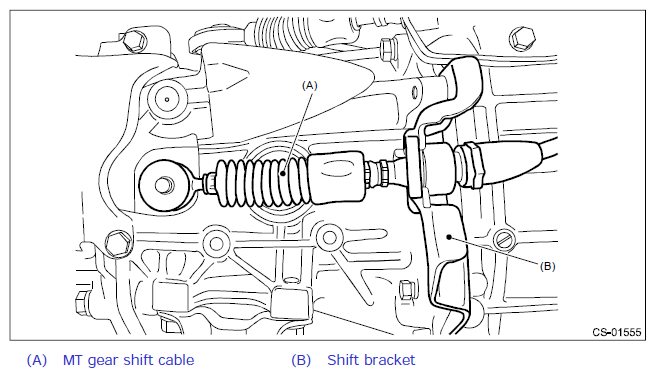

- Remove the shift bracket together with the MT gear shift cable.
CAUTION:
Do not apply extra overload while holding the part (a).
- Remove the cable cover plate.

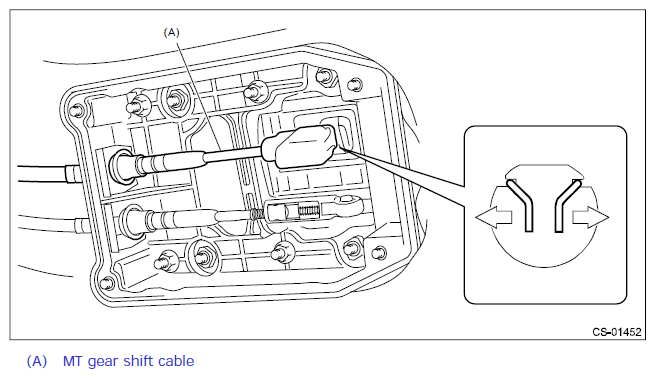

- Disconnect the MT gear shift cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not apply extra overload while holding the part (a).
NOTE:
Pull out down the MT gear shift cable to spread the spring.

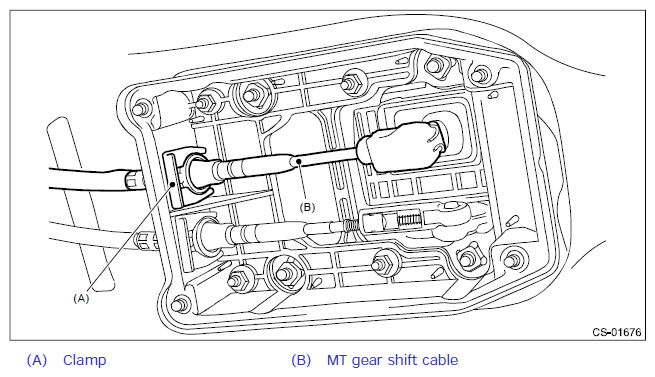

- Remove the clamp.
- Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
