Except For STI Model
- Install the gear shift lever assembly.
Tightening Torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the harness clamp.
- Lift up the vehicle.
- Install the cable cover assembly.
Tightening Torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

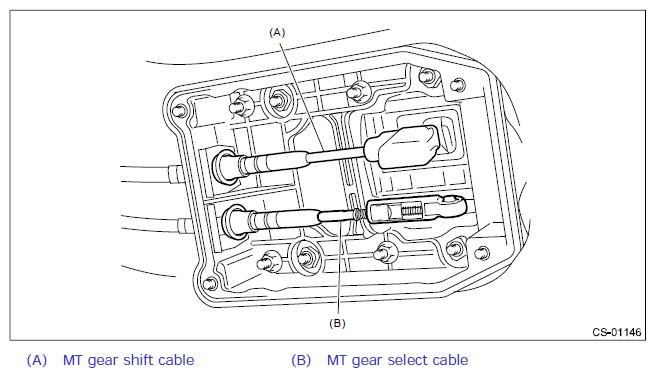

- Connect the MT gear shift cable and MT gear select cable.CAUTION:
- Be careful not to deform the cable inner.
- Do not twist the cable inner excessively.
- Do not apply extra overload while holding the part (a).
- Attach the cable cover plate.
Tightening Torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the center exhaust cover.
Tightening Torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Install the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>INSTALLATION
- Lower the vehicle.
- Install the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
- Install the cover - shift lever, and install the gear shift knob. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
- Install the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>INSTALLATION
- Make sure the gears can be shifted accurately into each gear. Adjust the MT gear select lever, if the gears cannot be shifted correctly. Ref. to CONTROL SYSTEMS>MT Gear Select Cable>ADJUSTMENT
- Connect the battery ground terminal. Ref. to NOTE>BATTERY
