Except For STI Model

  1. Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe (rear). Ref. to EXHAUST (EXCEPT FOR STI)>Center Exhaust Pipe>REMOVAL
  4. Remove the center exhaust cover.
    G12448345
  5. Remove the cable cover plate.
    G10267862
  6. Disconnect the MT gear shift cable and MT gear select cable.
    CAUTION:
    • Be careful not to deform the cable inner.
    • Do not twist the cable inner excessively.
    • Do not apply extra overload while holding the part (a).
    G12392870

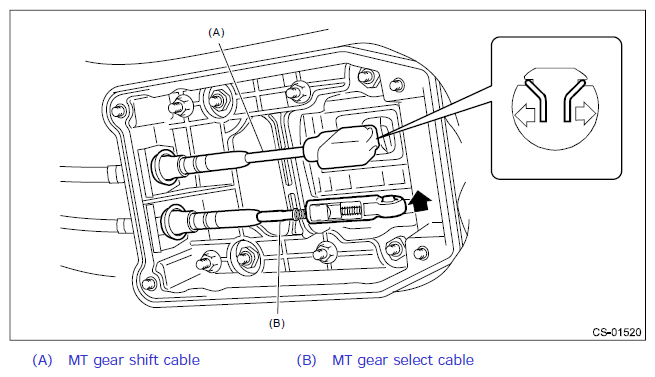

    1. Pull out down the MT gear shift cable to spread the spring.
    2. Push the MT gear select cable in the direction of arrow, and remove it.
      G12448348
  7. Remove the cable cover assembly.
    G06651771
  8. Lower the vehicle.
  9. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  10. Remove the gear shift knob and remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  11. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  12. Remove the harness clamp.
  13. Remove the gear shift lever assembly.
    NOTE: The MT gear shift lever cannot be disassembled.
    G09481214
