STI Model

  1. Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the gear shift knob by turning it counterclockwise.
  3. Remove the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  4. Remove the cover - shift lever. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  5. Remove the panel center LWR LH and RH. Ref. to EXTERIOR/INTERIOR TRIM>Console Box>REMOVAL
  6. Remove the clamp.
    G10267853
  7. Remove the boot and insulator assembly.
    G10267854
  8. Remove the harness clamp.
    G10267855
  9. Remove the plate COMPL.
    G10267856
  10. Lift up the vehicle.
  11. Remove the center exhaust pipe (rear). Ref. to EXHAUST (STI)>Center Exhaust Pipe>REMOVAL
  12. Remove the center exhaust cover.
    G08550630
  13. Remove the crossmember. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (6MT) (TY85)>Transmission Mounting System>REMOVAL

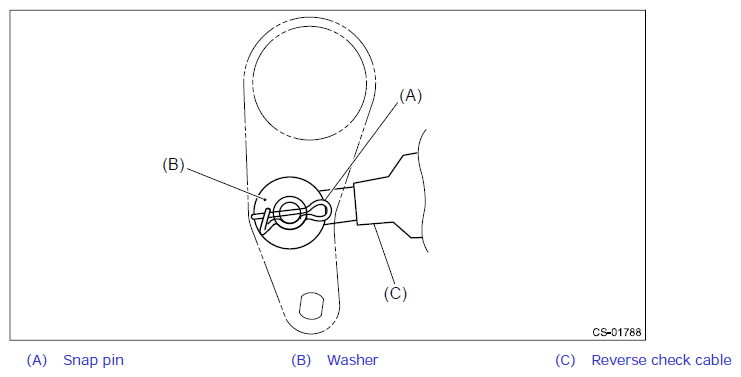

  14. Remove the snap pin and washer, and remove the reverse check cable.
    G12448342

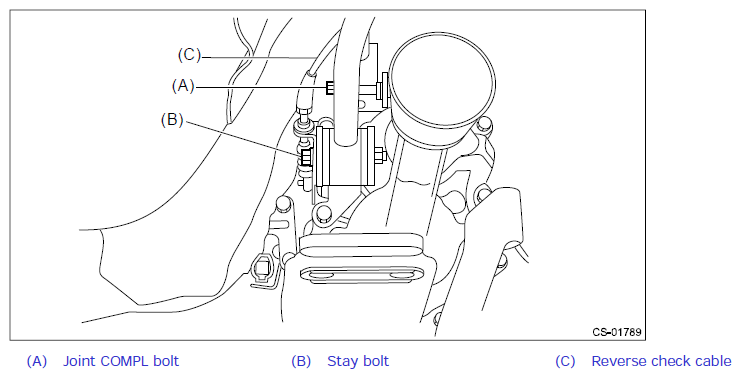

  15. Move the transmission to the right side, and remove the joint COMPL, stay bolts and reverse check cable.
    NOTE: If the transmission is not moved aside, the joint COMPL and stay bolts may contact the body and cause damage.
    G12448343
  16. Remove the cushion rubber.
    G10267860
  17. Remove the gear shift lever.
