- Shift the select lever to "N" range.
- Disconnect the ground cable from battery. Ref. to NOTE>BATTERY
NOTE:
For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle.
- Remove the center exhaust pipe (rear). Ref. to EXHAUST(EXCEPT FOR STI)>Center Exhaust Pipe>REMOVAL
- Remove the center exhaust cover.

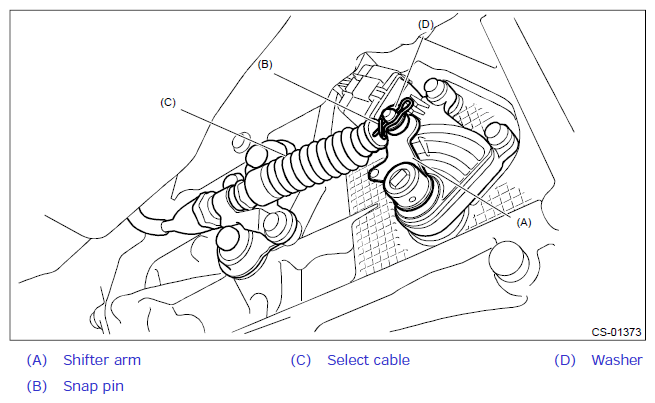

- Remove the snap pin and washer from the shifter arm.
CAUTION:
Do not apply extra overload while holding the part (a).
- Remove the plate assembly.

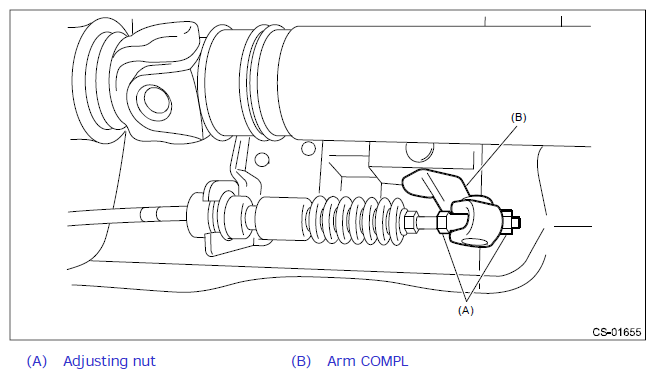

- Disconnect the cable from arm COMPL.
CAUTION:
Do not apply extra overload while holding the part (a).

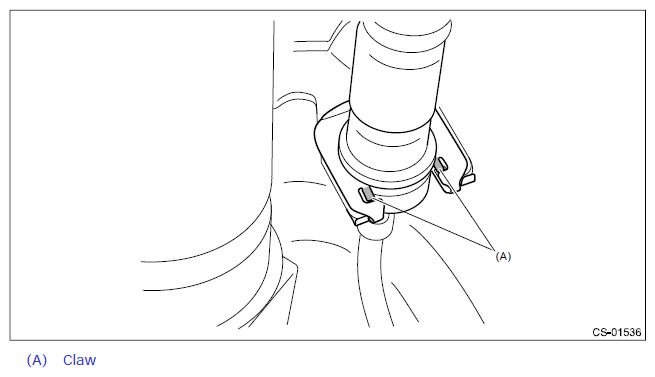

- Raise the claw of clamp and remove the cable.

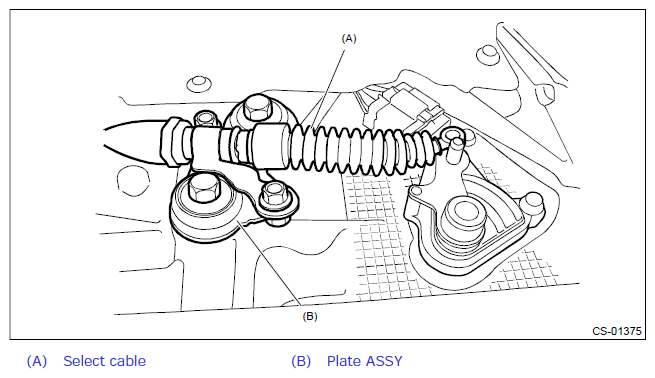

- Remove the select cable from plate assembly.
