MT Gear Shift Lever: Disassembly
NOTE:
Disassemble procedures are only for STI model.

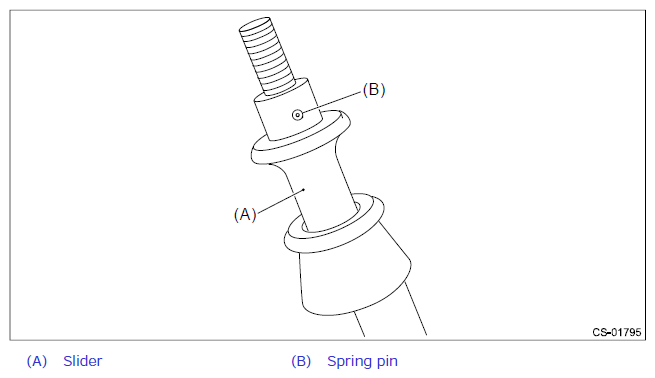

- Remove the spring pin from the slider.

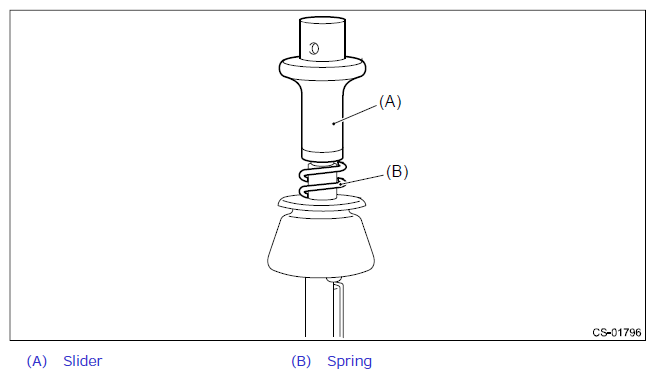

- Remove the slider and spring.

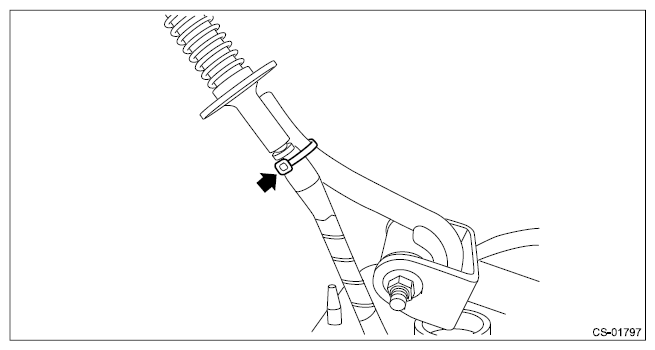

- Cut off the band clip.

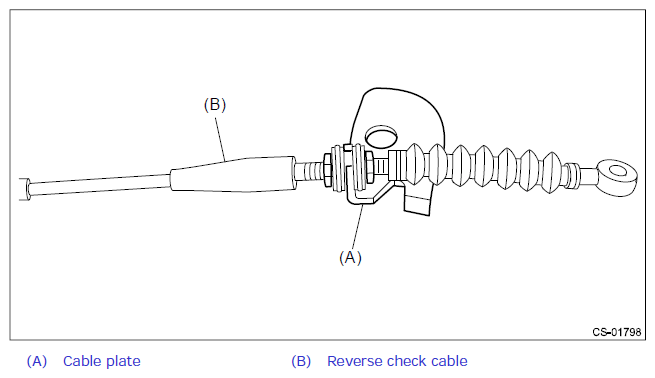

- Remove the reverse check cable from the cable plate.
- Remove the reverse check cable.

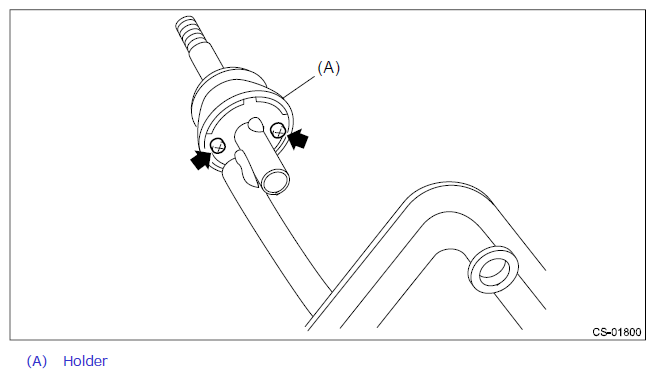

- Remove the holder and spring.

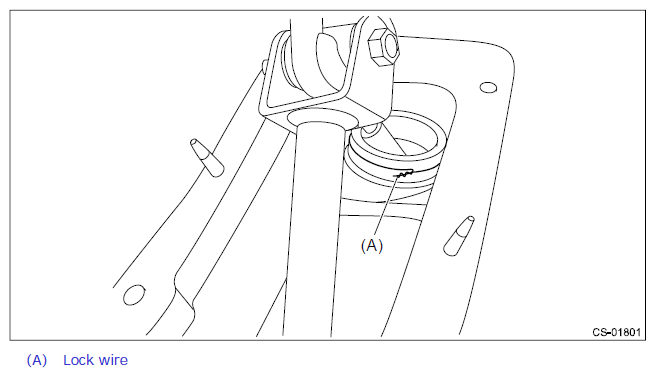

- Disassemble the lock wire.NOTE: Do not reuse the lock wire.

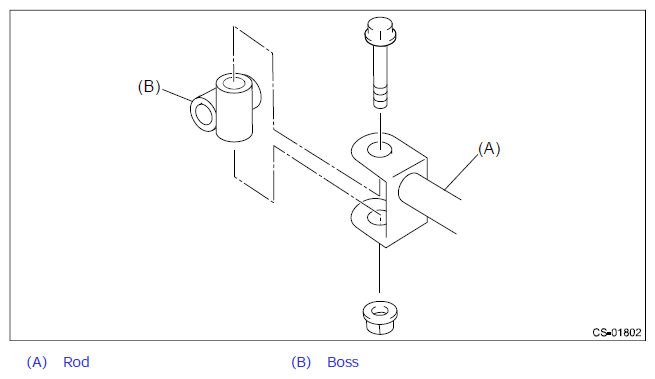

- Remove the boss from the rod.

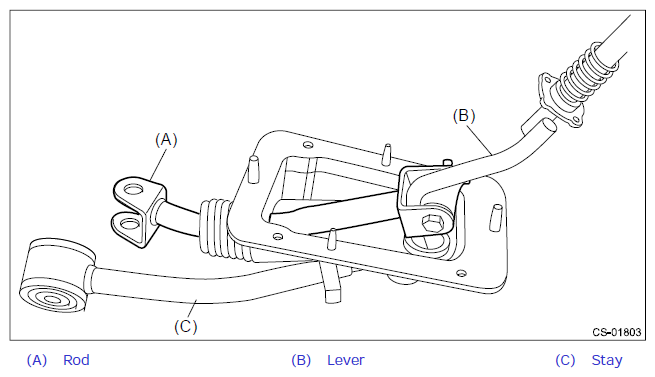

- Remove the rod from lever.
- Separate the rod and inner boot.

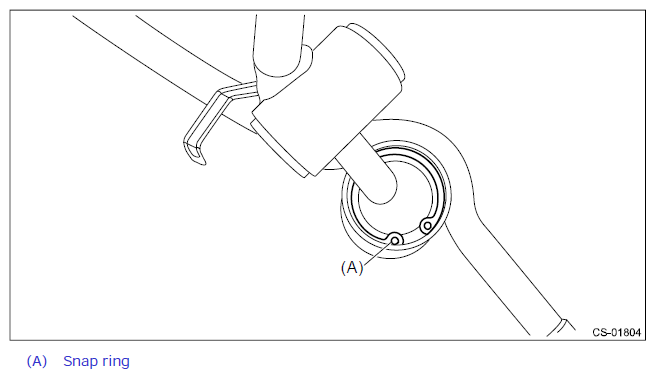

- Remove the snap ring.
- Separate the gear shift lever and the stay.

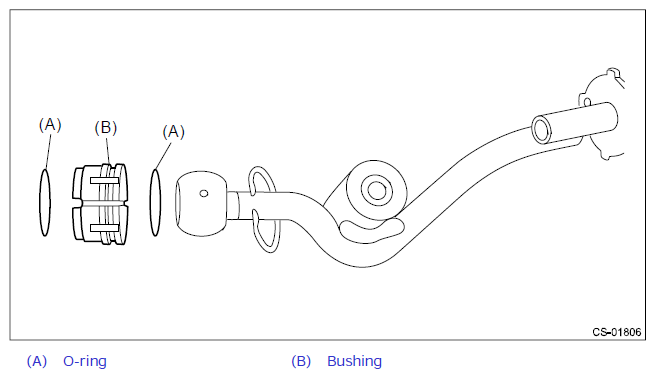

- Remove the O-ring and bushing.

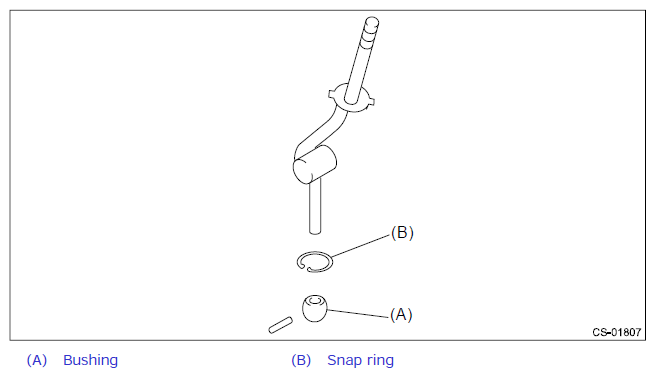

- Remove the spring pin, and then remove the bushing and snap ring.

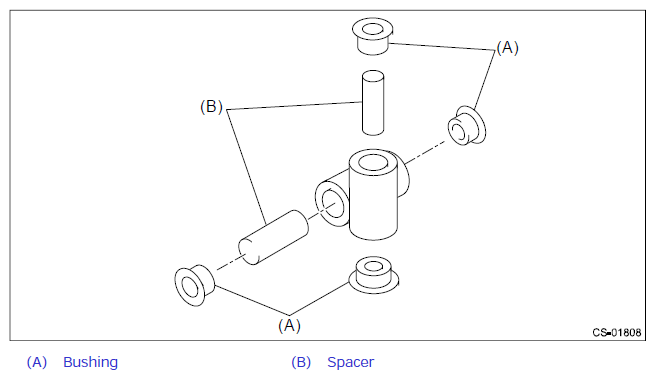

- Remove the bushing and spacer from the boss.

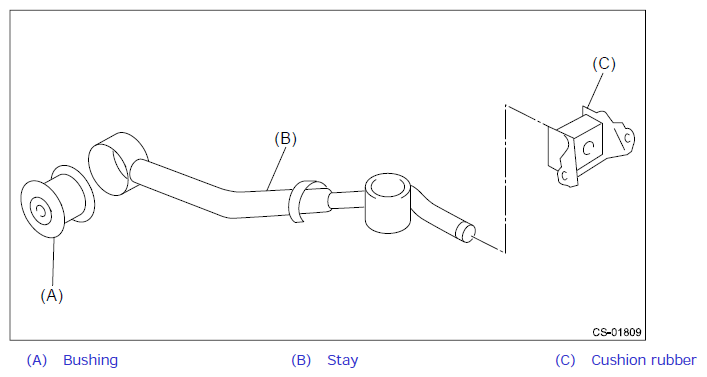

- Remove the bushing and cushion rubber from the stay.
