Accelerator Pedal: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the connector (A).
  3. Remove the nut (B) securing accelerator pedal assembly, and remove the accelerator pedal assembly.

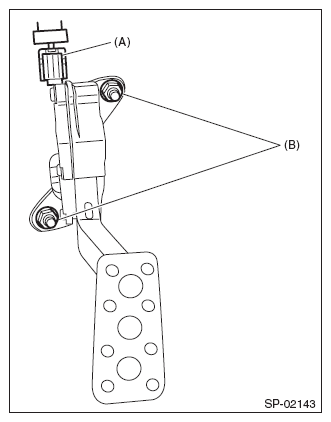

    G10265661
