Drive Cycle Ab
| DTC | Item | Condition |
|---|---|---|
| P0244 | TURBOCHARGER/SUPERCHARGER WASTEGATE SOLENOID "A" RANGE/PERFORMANCE | Full warm-up (TYPE RA) |
Diagnostic procedure:
WARNING:
When performing the drive cycle AB on the public road, be very careful of the traffic condition and the safe driving must be the high priority.
- Using the Subaru Select Monitor, perform the clear memory for «Engine». Ref. to ENGINE (DIAGNOSTICS) (STI)>Clear Memory Mode>OPERATION .

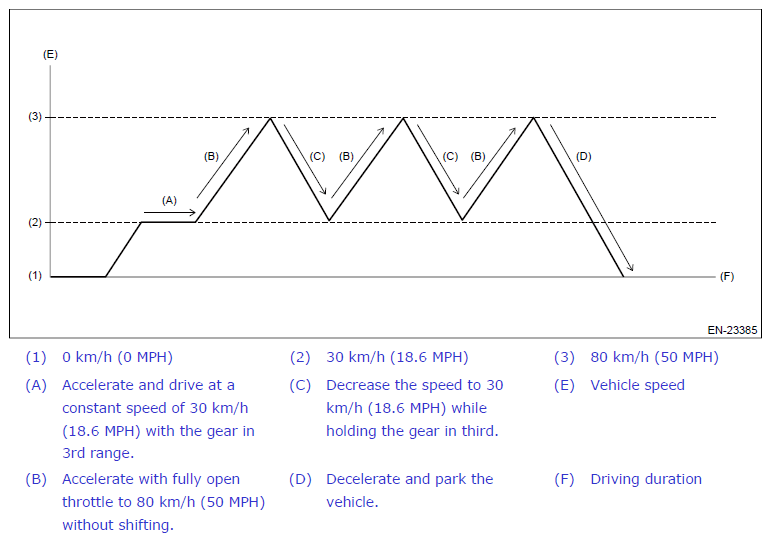

- Drive according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (STI)>Read Diagnostic Trouble Code (DTC)>OPERATION .
