Engine Control System (Diagnostics - Introduction) (STI)
>>
Electrical Component Location
>>
Location
>>
Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

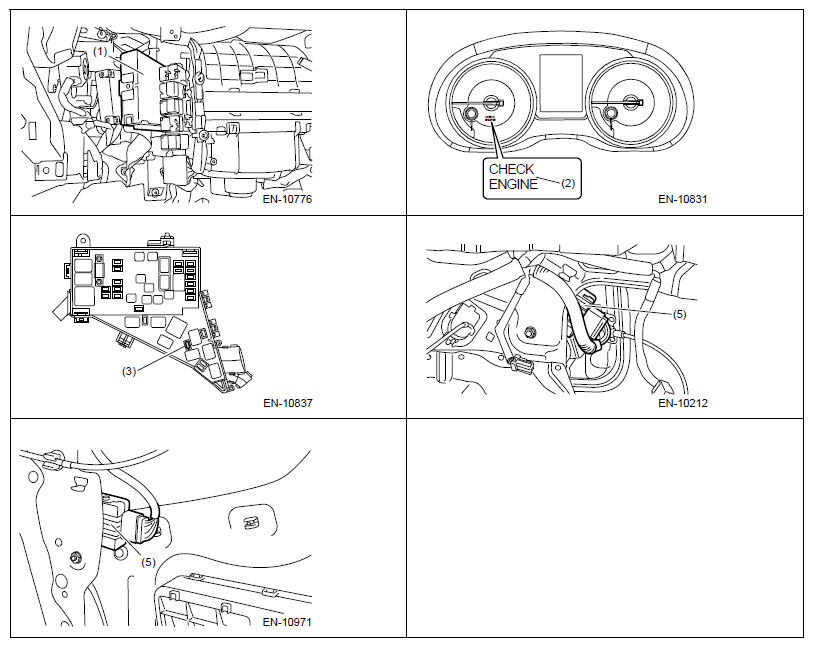

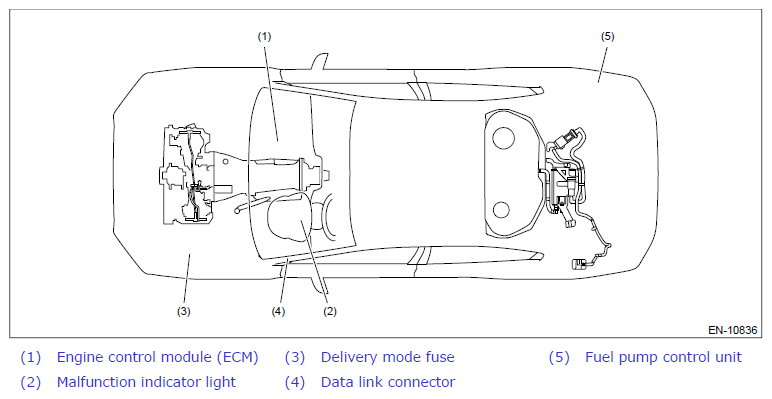

Control Module
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
