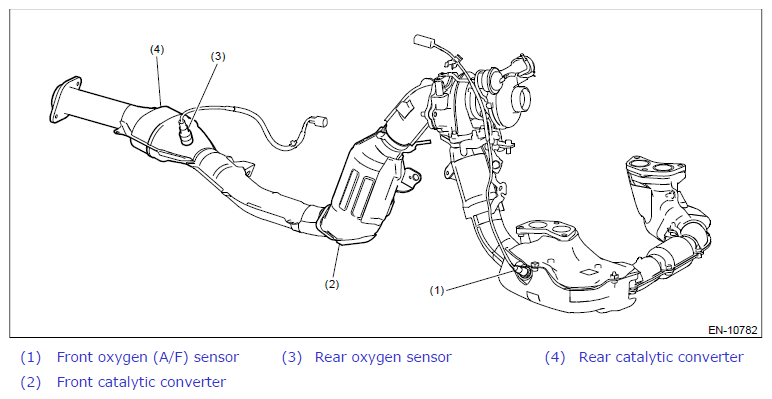

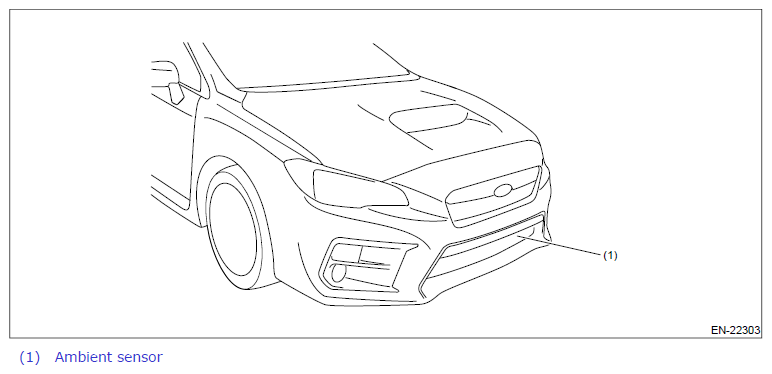

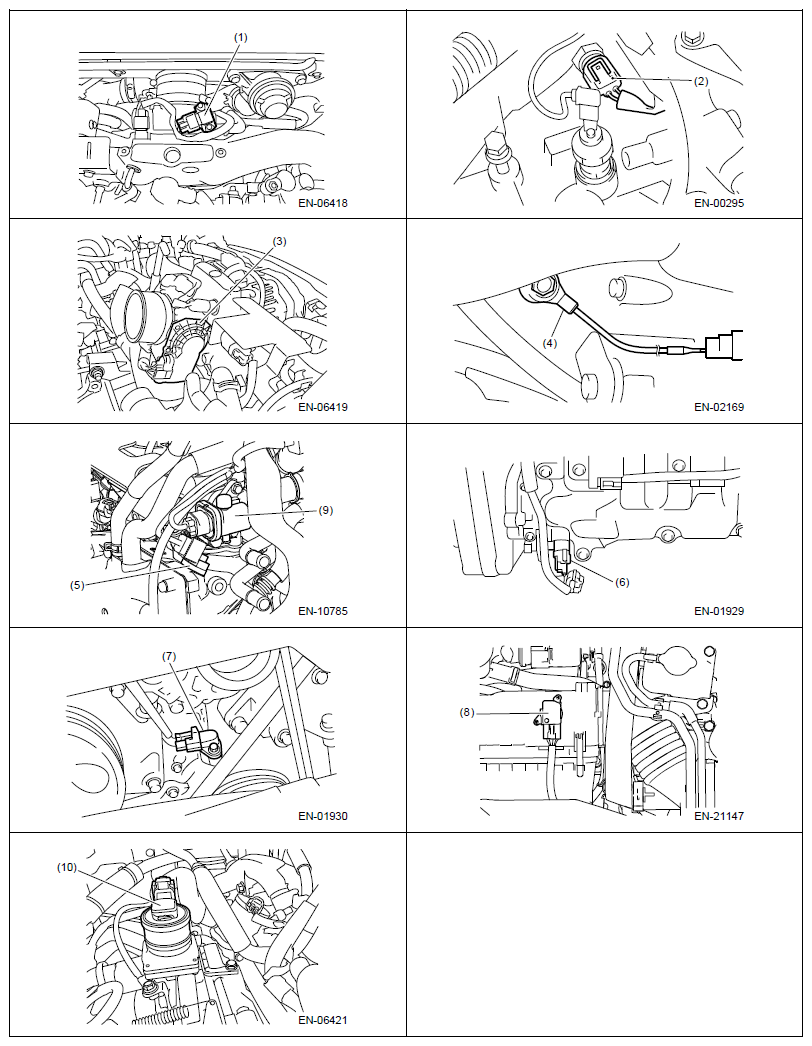

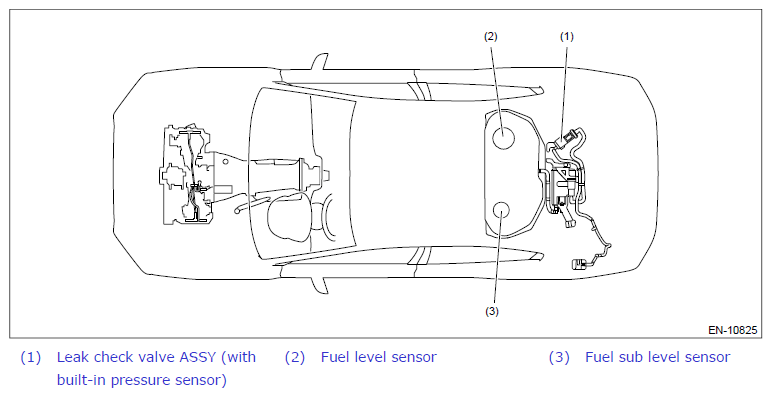

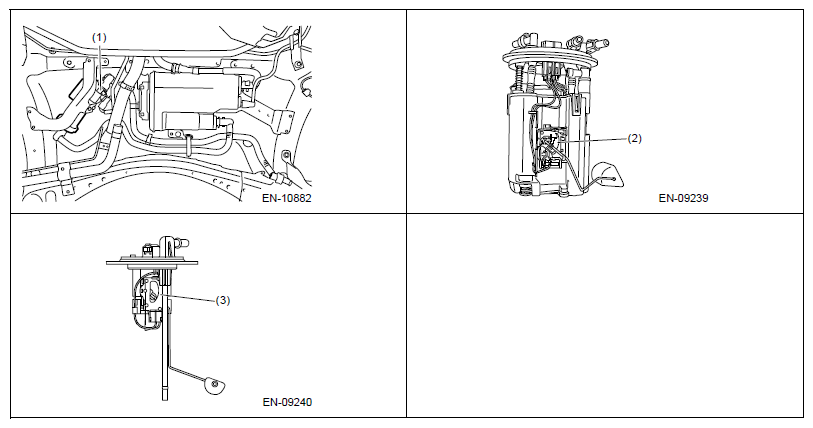

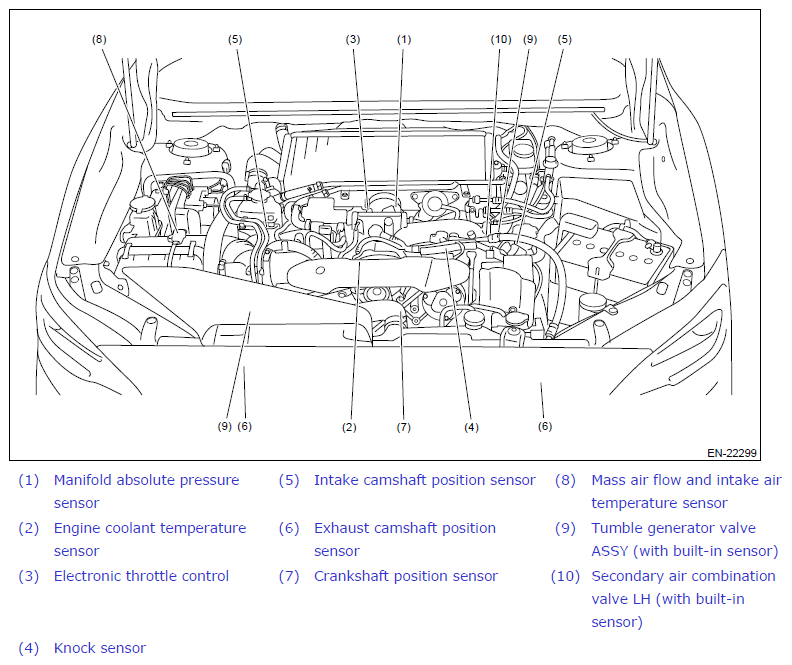

Engine Control System (Diagnostics - Introduction) (STI): Electrical Component Location: Location: Sensor

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
