Fuel Filler Pipe: Assembly

  1. Using a new neck holder, assemble the fuel filler pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>GENERAL DESCRIPTION>COMPONENT>FUEL FILLER PIPE .

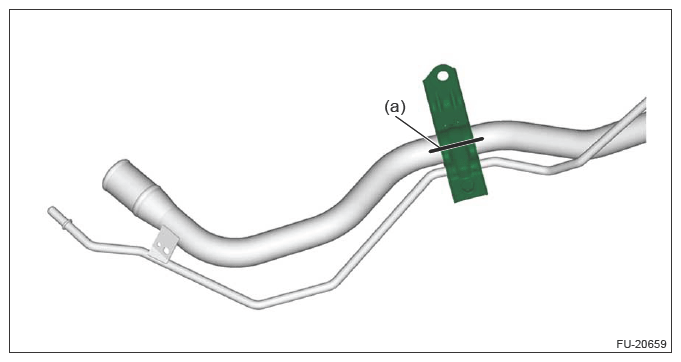

    NOTE: Install the fuel filler pipe bracket to the fuel filler pipe by aligning the alignment marks (a).
    G13198364Courtesy of SUBARU OF AMERICA, INC.
  2. Install the drain filter. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>DRAIN FILTER>INSTALLATION .
