Fuel Filler Pipe: Installation

Open the fuel filler lid.
Insert the fuel filler pipe assembly into the ring clip from inside of the rear fender.

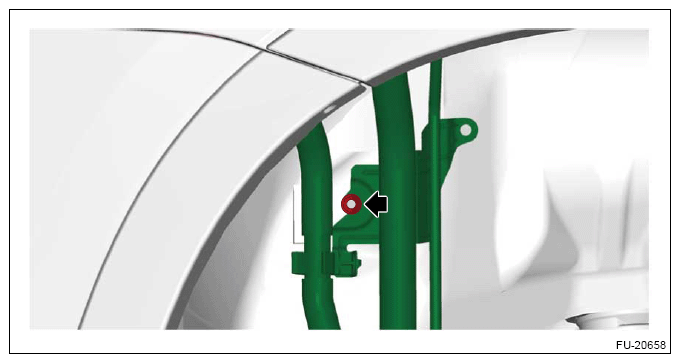

Install the nuts securing the fuel filler pipe assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the bolts securing the fuel filler pipe assembly.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

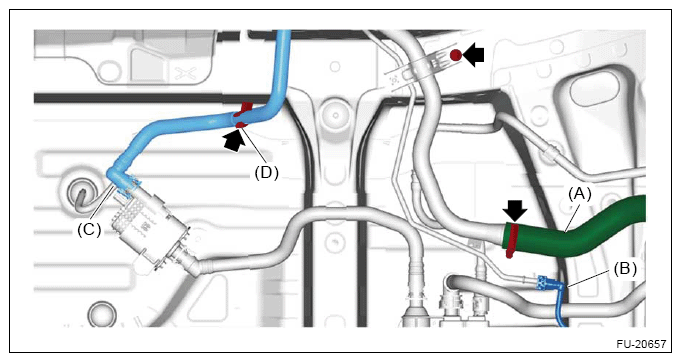

Install the drain tube to clip (D).
Connect the fuel filler hose (A), circulate tube (B) and drain tube (C) to the fuel filler pipe assembly.
Fuel filler hose:

Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES INSTALLATION>FUEL FILLER HOSE CONNECTION .

Circulate tube:

Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) .

Drain tube:

Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES> INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .

Courtesy of SUBARU OF AMERICA, INC.
Install the mud guard rear RH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION .
Install the rear sub frame assembly. Ref. to REAR SUSPENSION>SUB FRAME>INSTALLATION .
Install the fuel filler pipe protector.
