Fuel Insulator: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>INTAKE MANIFOLD ASSEMBLY>REMOVAL .

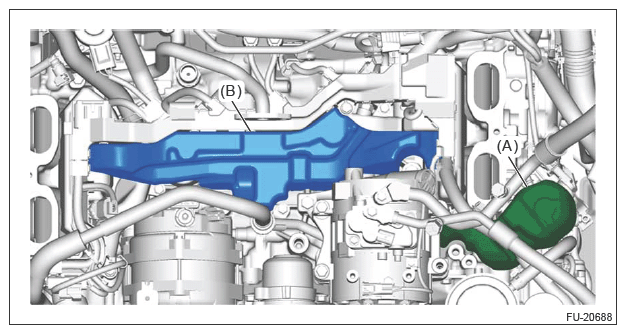

  3. Remove the fuel pump insulator (A) and fuel pipe insulator No. 3 (B).
    G13198209Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts securing the engine wiring harness.
    G13198210Courtesy of SUBARU OF AMERICA, INC.

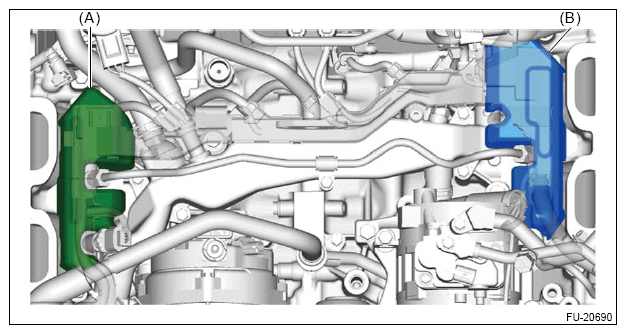

  5. Remove the fuel pipe insulator No. 2 (A) and fuel pipe insulator No. 4 (B).
    G13198211Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the connector (A) from fuel injector #3, and remove the fuel pipe insulator No. 1 (B).
  7. Disconnect the connector (C) from fuel injector #4, and remove the fuel pipe insulator No. 5 (D).
    G13198212Courtesy of SUBARU OF AMERICA, INC.
